Tailored for the Bangladesh Grid: Single-Phase Two-Element Anti-Tamper Energy Meter, Boosting Rural Electrification

Tailored for the Bangladesh Grid: Single-Phase Two-Element Anti-Tamper Energy Meter, Boosting Rural Electrification

High precision, long service life, and robust tamper resistance, providing reliable and efficient metering solutions for power companies.
সিংগেল ফেজ ডুয়েল এলিমেন্ট অ্যান্টি-টেম্পার ডিজিটাল কিলোওয়াট-আওয়ার মিটার, আপনার পণ্য পছন্দকে শক্তি প্রদান করে।

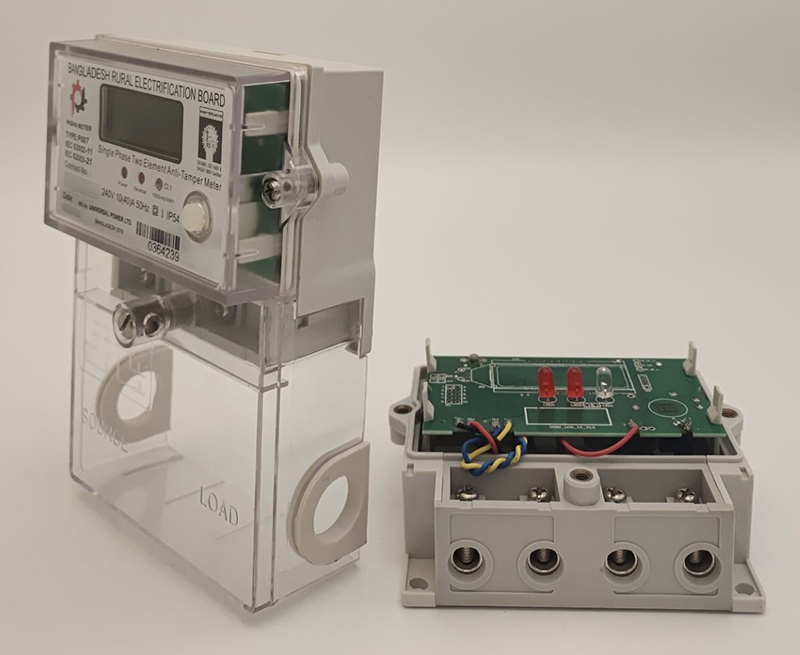

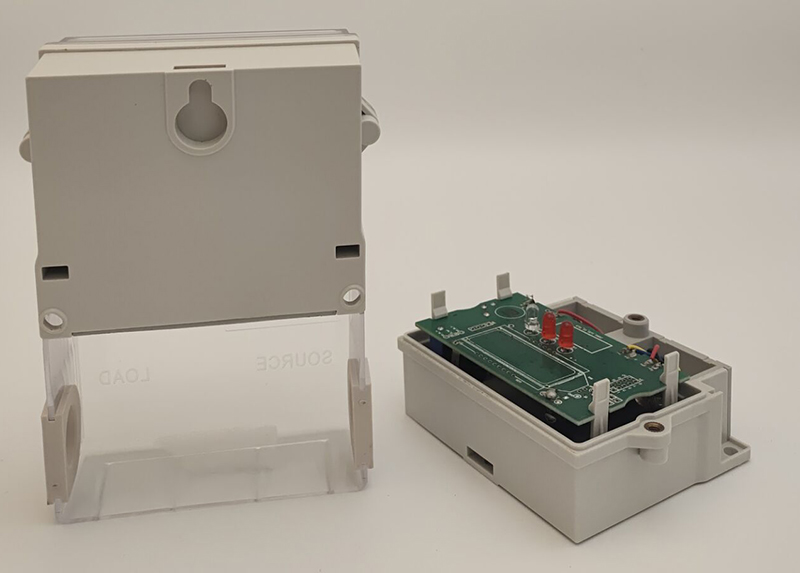

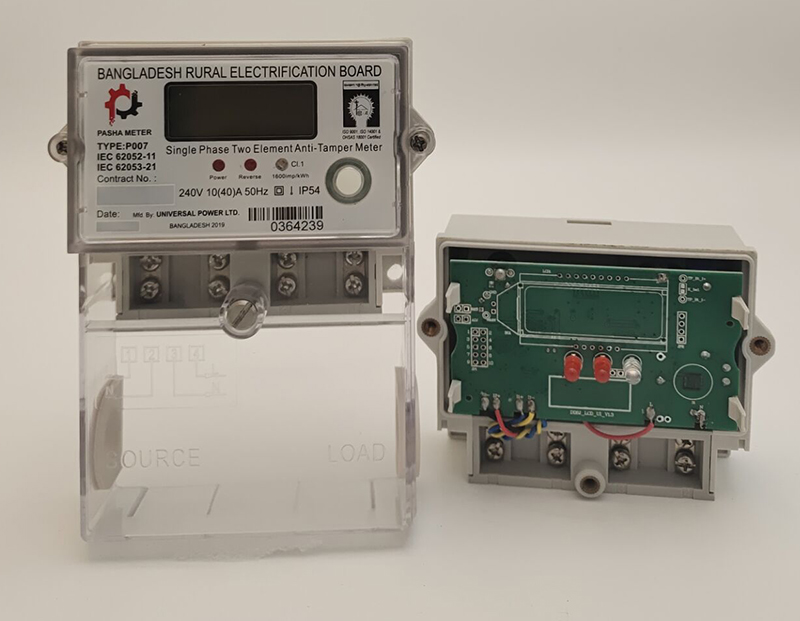

Single Phase Two Element Anti-Tamper Energy Meter, a single-phase meter suitable for the Bangladesh Rural Electrification Board.

Bangladesh is actively advancing the modernization and smartization of its power infrastructure, which presents significant growth opportunities in the electricity meter market. Institutions like the Bangladesh Rural Electrification Board are vigorously promoting grid coverage in rural areas. Our product is well-suited for such environments, offering superior quality and competitive pricing.

General Characteristics

Installation: Outdoor

Type: Electronic

Application: Recording bidirectional load single-phase active energy

Rated System Voltage: 240 V (phase line to neutral line)

Voltage Variation Range: -30% to +15% of reference voltage

Connection: Single-phase, 2-wire, bottom connection

Number of Elements: 2 (two) elements

System Frequency: 50 Hz

Frequency Variation: ±5%

Rated Current: The basic current should be up to 10 amperes (but not exceeding 10 amperes), and the maximum current should not be less than 40 amperes.

Start-up Current: < 20 mA

Accuracy Class: Complies with IEC 62052-11 and IEC 62053-21, electronic meters with an accuracy class of 1.0 for alternating current.

Recording Mechanism

The recording mechanism shall be a liquid crystal display (LCD) with a 6-digit or more numeric display for kWh, including 1 decimal place. The width of the digits should be 5 mm.

The LCD display shall be of high quality and should not be damaged during the meter's service life. The displayed values shall be clear and have good contrast with the background. Under normal temperature and humidity conditions, the expected lifespan of the LCD shall be 15 years.

The LCD shall have a backlit display to facilitate reading parameters under low-light conditions. The 7-segment LCD shall accurately display the cumulative active energy and the maximum demand.

The LCD shall be configurable to operate even without the main power supply; i.e., in the event of a power outage, the meter reading can be accessed by pressing a button or via touch activation. For this purpose, the meter shall be equipped with a non-rechargeable, maintenance-free lithium battery to power the display when the main supply is interrupted. The battery also supports real-time data locking functionality. The battery life shall be 15 years, with a minimum capacity of 1,600 mAh. Battery life and capacity must be supported by relevant test reports.
