Solving Your Electrical Connection Problems: A Guide to Terminal and Connecting Tube Products

Solving Your Electrical Connection Problems: A Guide to Terminal and Connecting Tube Products

In electrical engineering, power systems, and home wiring, safe and reliable electrical connections are the cornerstone of stable system operation. Faced with different wire materials, diverse application scenarios, and complex working conditions, choosing the correct connection devices is crucial. We are committed to providing a comprehensive range of electrical connection products, covering copper, aluminium, and copper-aluminium transition connections, to meet your all-around needs from large-scale projects to precise wiring.

I. Professional Materials to Meet Comprehensive Connection Challenges

• Pure Copper/Red Copper Material: Superior Conductivity

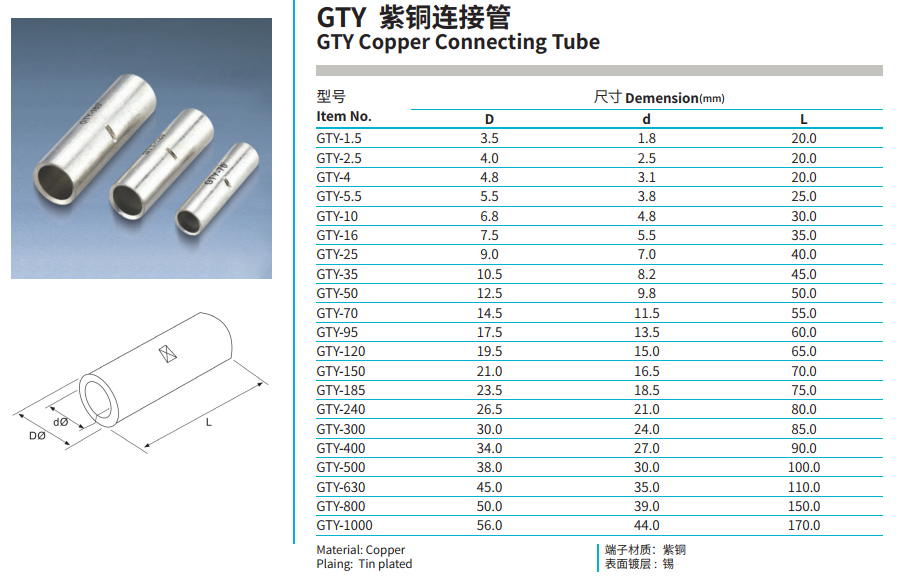

  • Products: SC(JGK) Copper Connecting Terminal, GTY Copper Connecting Tube, DT Copper Connecting Terminal

  • Features: Made from high-purity copper material, offering high electrical conductivity, excellent ductility, and strong oxidation resistance.

  • Application: Designed for connections between copper wires, the preferred choice where high conductivity and stability are required.


• Aluminium Material: Lightweight and Cost-Effective Solution

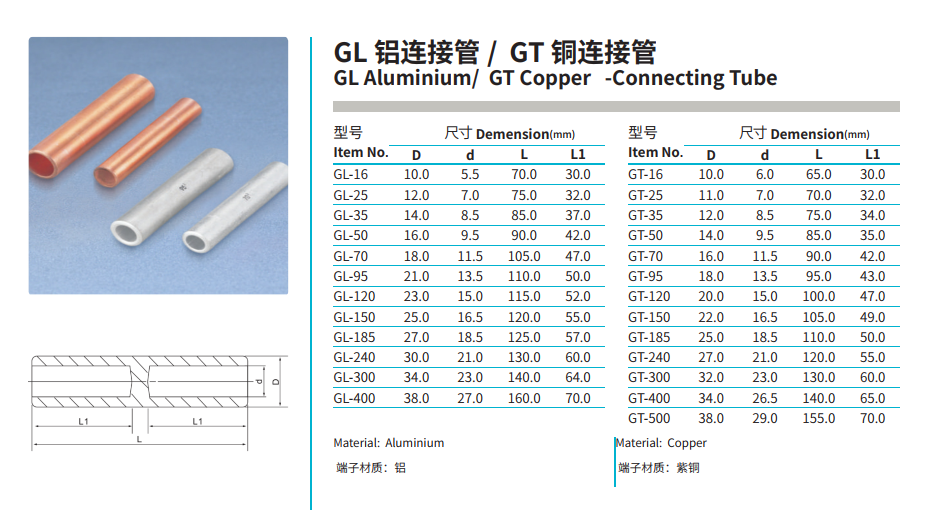

  • Product: GL Aluminium Connecting Tube

  • Features: Lightweight, cost-effective, and possesses good electrical conductivity.

  • Application: Used for splicing and extending aluminium wires to aluminium wires.


• Copper-Aluminium Transition Material: Solving Connection Difficulties Between Different Metals

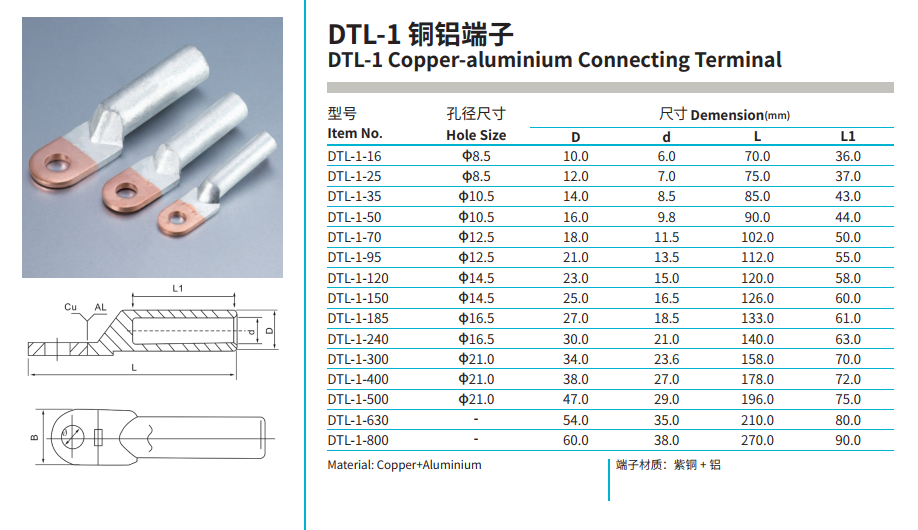

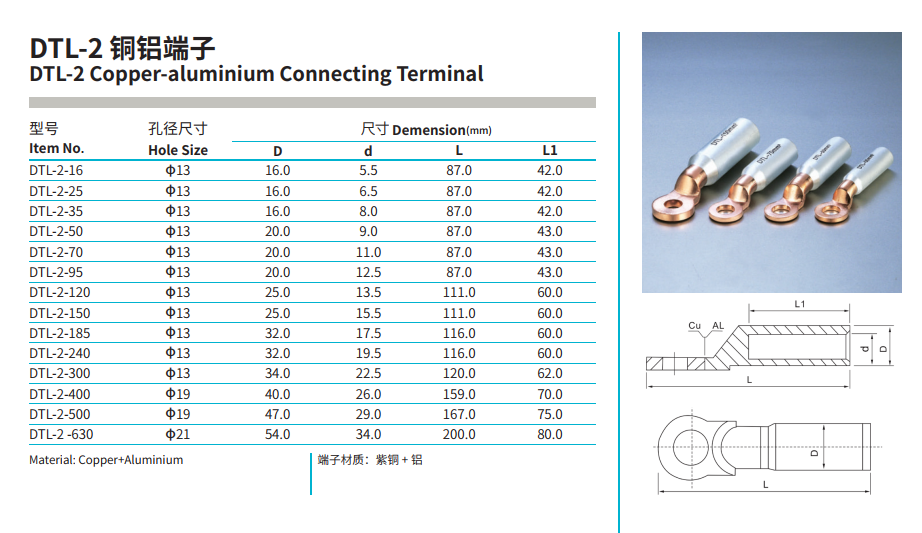

  • Products: GTL Copper-Aluminium Connecting Tube, DTL-1 Copper-Aluminium Connecting Terminal, DTL-2 Copper-Aluminium Connecting Terminal

  • Features: Uses special processes to reliably join copper and aluminium, preventing electrochemical corrosion caused by the galvanic effect.

  • Application: Essential transition connection components for joining copper wires to aluminium wires, widely used in old network renovations, transformer outlets, etc.


II. Diverse Structures to Adapt to Different Specific Environments

• Tubular/Rod-shaped Connecting Tubes

  • Products: GTL/GTY/GL/GT series connecting tubes

  • Function: Used to splice two wires, secured by crimping, facilitating line extension and branch connections.



• Standard Wiring Terminals

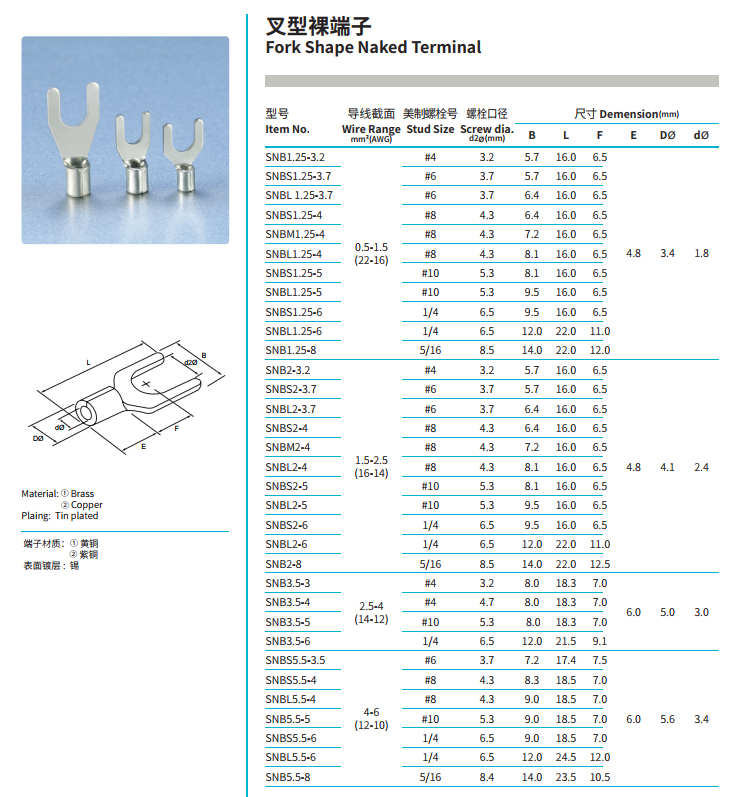

  • Fork Shape Naked Terminal: Easy installation and removal, convenient for maintenance and inspection, often used in circuits requiring frequent testing or replacement.

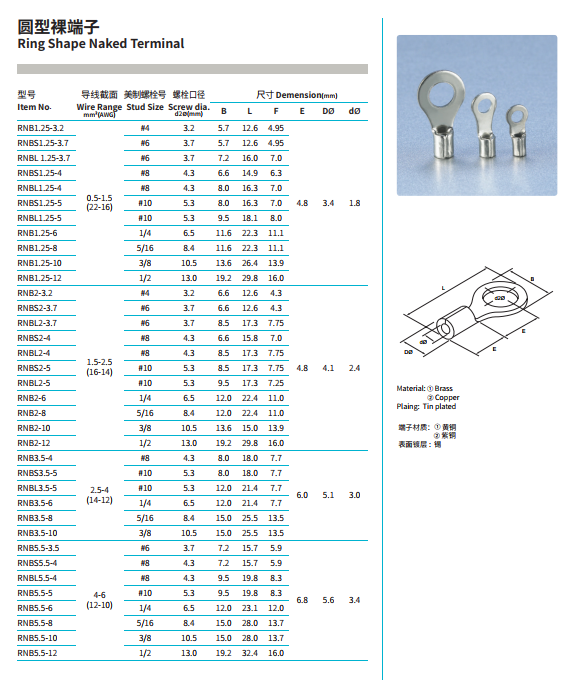

  • Ring Shape Naked Terminal: Provides maximum contact area, fixed by screw, resistant to vibration and loosening, suitable for critical connection points that need to carry high currents.

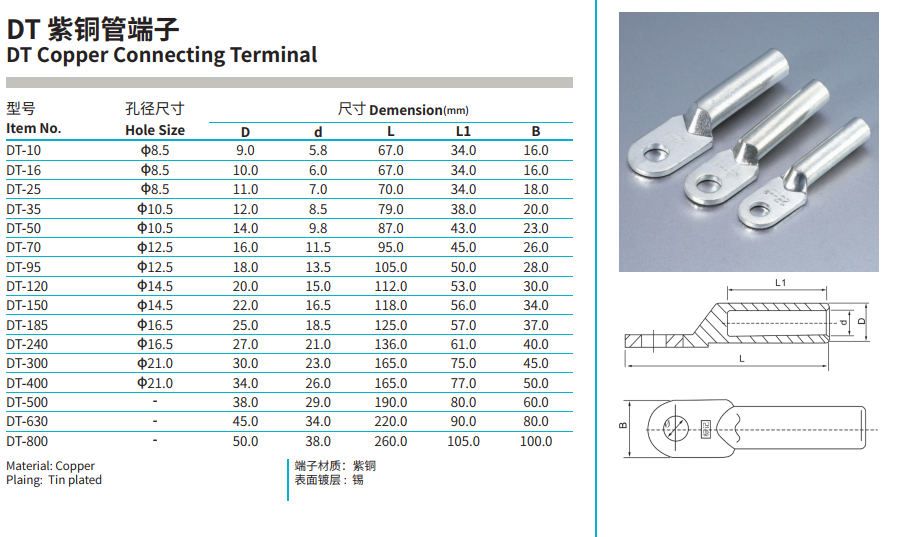

  • DT Copper Connecting Terminal: Combines the reliability of tubular crimping with the device connection function of a terminal, serving as the standard interface between wire and equipment.


• Innovative Inspection Port Design

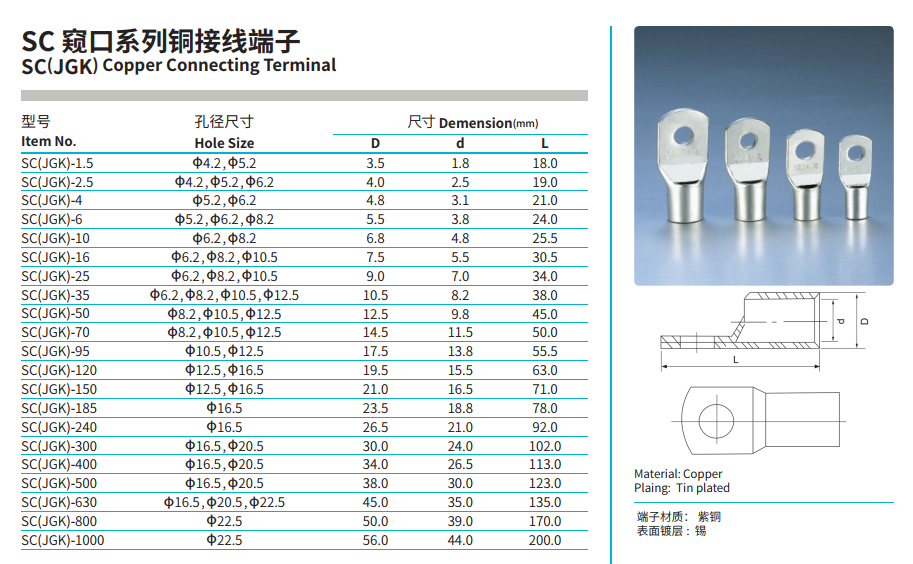

  • Product: SC(JGK) Copper Connecting Terminal

  • Function: Its unique side-opening design greatly simplifies "T-type" tap connections, saving time and costs while improving work efficiency. Ideal for lighting circuits, branches within distribution boards, and more.



From a single terminal to a connecting tube, we consistently pursue the highest standards of electrical safety. We offer not just a series of products, but a complete set of safe, reliable, efficient, and professional electrical connection solutions. Whatever your need, our product line has the right solution to provide perfect support for the stable operation of your power systems and equipment.
