 How does an automatic transfer switch work?

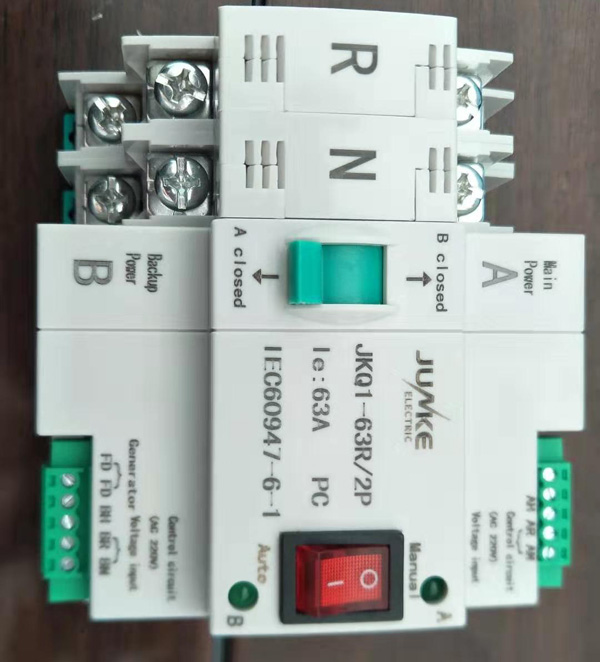

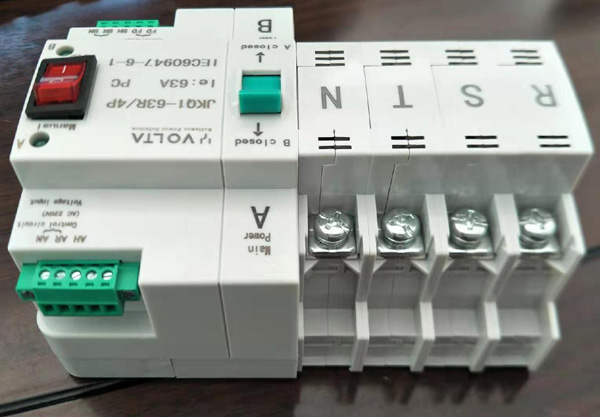

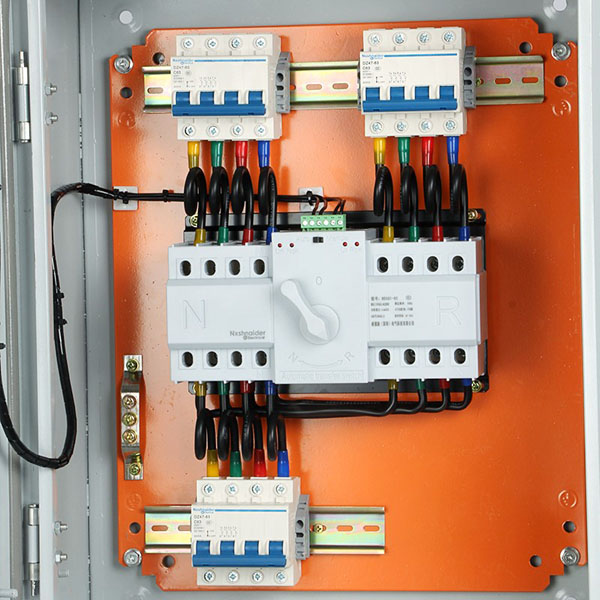

An automatic transfer switch (ATS) is a self-acting, intelligent power switching device governed by dedicated control logic. The principal purpose of an ATS is to ensure the continuous delivery of electrical power from one of two power sources to a connected load circuit (electrical equipment – lights, motors, computers, etc.).

The control logic or automatic controller is typically microprocessor-based and constantly monitors the electrical parameters (voltage, frequency) of primary and alternate power sources. Upon failure of the connected power source, the ATS will automatically transfer (switch) the load circuit to the other power source (if it is available). As a general rule, most automatic transfer switches seek connection to the primary power source (utility) by default and will only connect to the alternate power source (engine-generator, backup utility) when required (primary source failure) or requested to do so (operator command).

A typical transfer sequence includes:

  1. The normal utility power source fails.
  2. The transfer switch shifts the load to the emergency power source when power from the generator or backup utility feed is stable and within prescribed voltage and frequency tolerances. Depending on a facility’s needs and preferences, the transfer process is self-acting or manually-initiated.
  3. The transfer switch returns the load from the emergency power source to the normal power source when utility power is restored. The retransfer process is self-acting or manually-initiated.

What ATS arrangements are available?

A variety of arrangements are available utilizing two power sources and three power sources.

Two power sources

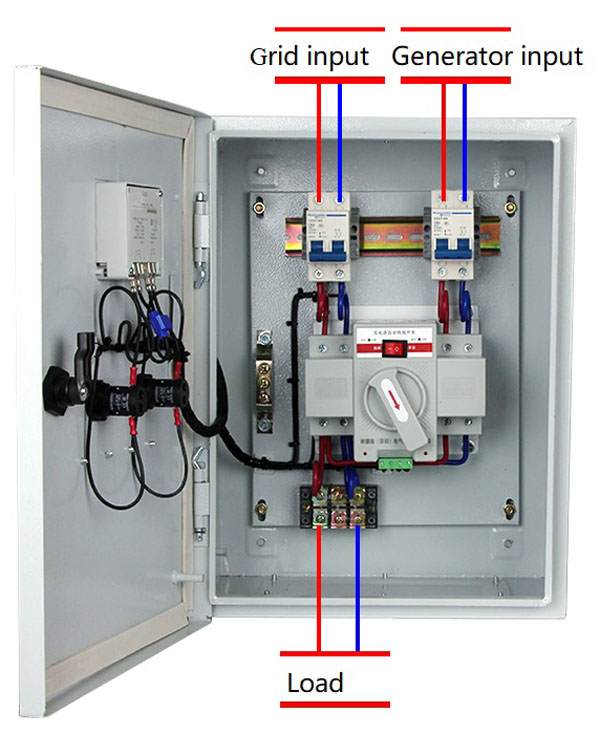

The standard transfer switch configuration includes an electric utility service and a generator for normal and emergency power sources. This system arrangement is typically referred to as an emergency standby generator system. The single generator shown may be several engine-generator sets operating in parallel.



This use case employs two utility sources that provide redundancy in the distribution system and allows for quick restoration of service to the load if an upstream equipment failure occurs. The two sources can be independent of each other, requiring the public utility company to provide dual electric services, or they can originate from a single electric service that is distributed through redundant paths within the facility.



Transfer switches, at times, are applied between two generator sets for prime power use, often at remote installations. In such cases, the generator may be required to provide continuous power 24/7.  To equally share run-time, source power is periodically alternated between the generator sets.


Three power sources


Critical facilities with an emergency standby generator system will often include provisions for a second generator connection to serve as a redundant emergency backup that can be used during periods of inclement weather, or when scheduled maintenance is being performed on the first generator.

As shown, in some cases, the first generator is permanently installed onsite whereas the second generator will be a portable roll-up type that is deployed when needed.

automatic-transfer-swtich-drawing-util-gen-gen-example -1.jpg


This configuration expands on the redundancy provided by a dual utility arrangement and includes an emergency standby generator source.  As shown, the generator can be dedicated for use by a single transfer switch or shared among multiple transfer switches employing a priority control scheme.

automatic-transfer-swtich-drawing-util-util-gen example-1.jpg

Different ATS transition types

Transfer switches transition loads between normal and emergency power sources with open or closed options. The specific functions performed by a given load and the importance of those functions to safety or security play an important role in determining which kind of transition is required.


Open transition

An open transition is a break-before-make transfer. The transfer switch breaks its connection to one power source before making a connection to the other. Open transitions include open-delayed and open in-phase.


Closed transition

A closed transition is a make-before-break transfer. The transfer switch makes a connection to a second power source before breaking its connection with the first power source. As there’s no gap between disconnection and connection, downstream loads receive continuous power throughout the transfer process.

ATS closed transition 1300x400

ATS modes of operation


Transfer initiation and operation are performed manually, typically by pushing a button or moving a handle; initiation occurs locally


Manually initiate a transfer by pressing a button or rotating a switch to cause an internal electromechanical device to electrically operate the switching mechanism; initiation can occur locally or remotely


Transfer switch controller is self-acting and completely manages both initiation and operation; initiation is triggered when the automatic controller senses an unavailability or loss of source power followed by operation of the switching mechanism
