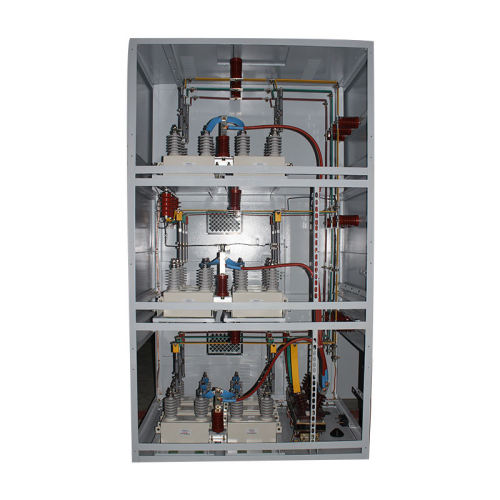

TBBX 6KV high voltage power factor correction device capacitor bank europe substation transformer
1.match for mainly transmission high voltage power transformer ,supply reactive power
2. let power transformer only supply active power , improve power quality

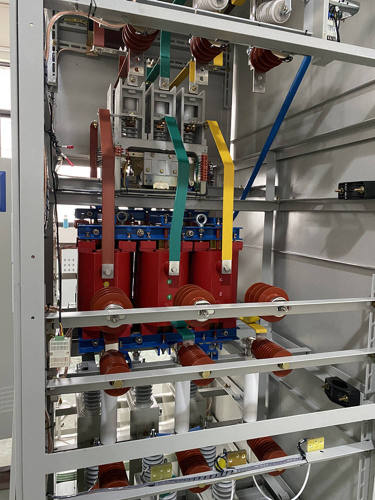

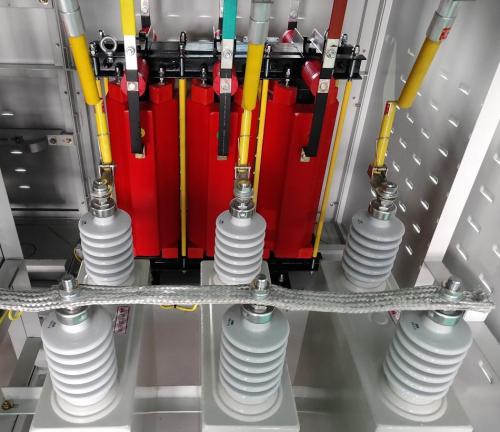

high voltage fiexd reactive compensation complete set/ deviceswitchgear panel(hereinafter referred to as the device) is suitable for 6-35kV AC power system with frequency of 50Hz. It is mainly used in power system to adjust bus voltage and reactive power, improve power factor, improve voltage quality and reduce network loss.
We can provide the most appropriate, the most reasonable solution according to the customer's requirements. As long as you tell us your requirements or drawings, we can provide a complete solution. And the main components, according to your requirements, choose the brand, Or we can provide cost-effective components to reduce your purchase cost.
Main technical performance index
1.1The difference between the actual capacitance and the rated capacitance of the device is within the range of 0- +5% of the rated capacitance. The standard is higher than other factories
1.2The ratio of the maximum to the mini capacitance between any two line terminals of the device shall not exceed 1.02.
2.1Under rated current, the allowable deviation of reactance value is 0~+5%.2.2The reactance value of each phase shall not exceed ± 2% of the average value of three phases
