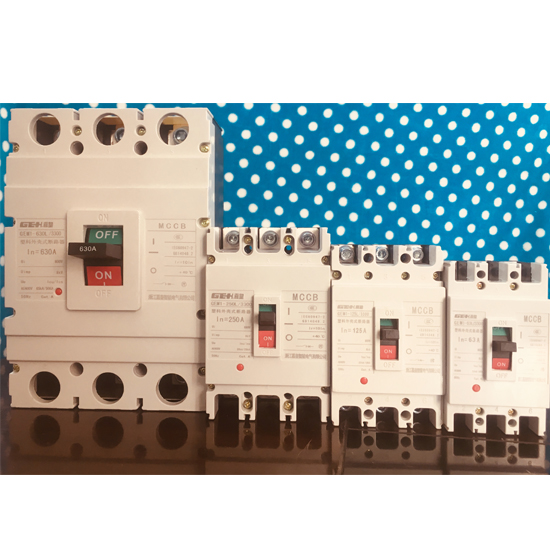

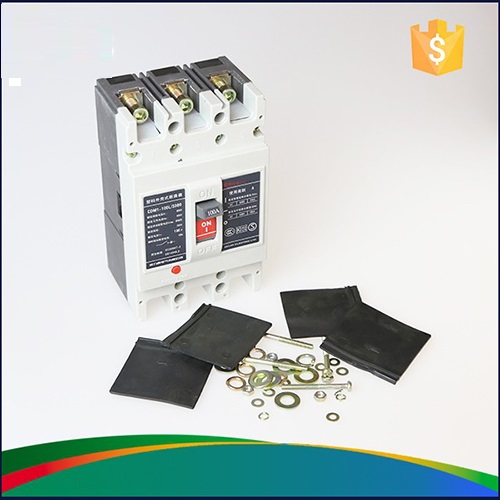

SZM1 3P 125A TYPE Moulded Case Circuit Breaker 690V Thermal magnetic MCCB

Item No.: 00138
Rated voltage Ue: AC400V
* Frequency:AC 50Hz;
* Rated insulation voltage Ui : 800V

* Rated impulse withstand voltage Uimp:8000V
* Rated current: below 800A
* Feature: Instantous disconnet, overload protection, short-circuit protection, ear
Description
Description

 Function:
MCCB to distribute electric power and protect circuits and equipment against overload,
undervoltage, and short-circuit faults.
MCCB to infrequently start and control AC motors.
MCCB to protect users against indirect contact.
MCCB to protect electrical installations against insulation faults (fire hazard, etc) .
MCCB used in building and factory.
2.Constructional features :
Thermamagnetic release offers instantaneous trip against short-circuit and long time delay trip against overcurrent.
The residual operating current value can be fixed or adjustable.
The residual operating current protection can be with time-delay or without time-delay.
Various accessories can be attached to the circuit breaker to extend its functions, such as undervoltage release, shunt release,ON/OFF position.
Product Parameter

Model CM-63 CM-125 CM-250 CM-400 CM-630 CM-800



Rated Current
40, 50, 63 63, 80,

100,125
 160, 180,

200, 225
250


225, 250
315, 350
400


400, 500

630


630, 700
800
Pole Number 2P/3P/4P
Rated Insulation Voltage Ui  AC/DC 1000V
Breaking Capacity
(kA) Icu
(1cs=75% Icu)
500V 25 35 35 35 50 50
750V 15 25 25 25 35 5
1000V 10 15 15 15 20 20
Mechanical Life  (times) 7000 7000 7000 4000 4000 2500
Breaking Times (ms) 20
Rated impact voltage Uimp (KV) 8
Ultimate breaking capacity Lcu (KV) 25
Trip type Thermal-magnetic
Ambient temperature -20ºC---70ºC
Altitude ≤2000M
installation Fixed, plug-in
