STE38-G Split Three Phase GPRS STS Smart Prepaid Energy Meter 3x230/400V 3x10(100)A Separate CIU Remote Recharge Token Kwh Meter For Africa Factory Commercial Farm
STE38-G Split Three Phase GPRS STS Smart Prepaid Energy Meter 3x230/400V 3x10(100)A Separate CIU Remote Recharge Token Kwh Meter For Africa Factory Commercial Farm STE38-G Split Three Phase GPRS STS Smart Prepaid Energy Meter 3x230/400V 3x10(100)A Separate CIU Remote Recharge Token Kwh Meter For Africa Factory Commercial Farm STE38-G Split Three Phase GPRS STS Smart Prepaid Energy Meter 3x230/400V 3x10(100)A Separate CIU Remote Recharge Token Kwh Meter For Africa Factory Commercial Farm STE38-G Split Three Phase GPRS STS Smart Prepaid Energy Meter 3x230/400V 3x10(100)A Separate CIU Remote Recharge Token Kwh Meter For Africa Factory Commercial Farm STE38-G Split Three Phase GPRS STS Smart Prepaid Energy Meter 3x230/400V 3x10(100)A Separate CIU Remote Recharge Token Kwh Meter For Africa Factory Commercial Farm STE38-G Split Three Phase GPRS STS Smart Prepaid Energy Meter 3x230/400V 3x10(100)A Separate CIU Remote Recharge Token Kwh Meter For Africa Factory Commercial Farm STE38-G Split Three Phase GPRS STS Smart Prepaid Energy Meter 3x230/400V 3x10(100)A Separate CIU Remote Recharge Token Kwh Meter For Africa Factory Commercial Farm STE38-G Split Three Phase GPRS STS Smart Prepaid Energy Meter 3x230/400V 3x10(100)A Separate CIU Remote Recharge Token Kwh Meter For Africa Factory Commercial Farm STE38-G Split Three Phase GPRS STS Smart Prepaid Energy Meter 3x230/400V 3x10(100)A Separate CIU Remote Recharge Token Kwh Meter For Africa Factory Commercial Farm STE38-G Split Three Phase GPRS STS Smart Prepaid Energy Meter 3x230/400V 3x10(100)A Separate CIU Remote Recharge Token Kwh Meter For Africa Factory Commercial Farm STE38-G Split Three Phase GPRS STS Smart Prepaid Energy Meter 3x230/400V 3x10(100)A Separate CIU Remote Recharge Token Kwh Meter For Africa Factory Commercial Farm STE38-G Split Three Phase GPRS STS Smart Prepaid Energy Meter 3x230/400V 3x10(100)A Separate CIU Remote Recharge Token Kwh Meter For Africa Factory Commercial Farm
  • STE38-G Split Three Phase GPRS STS Smart Prepaid Energy Meter 3x230/400V 3x10(100)A Separate CIU Remote Recharge Token Kwh Meter For Africa Factory Commercial Farm
  • STE38-G Split Three Phase GPRS STS Smart Prepaid Energy Meter 3x230/400V 3x10(100)A Separate CIU Remote Recharge Token Kwh Meter For Africa Factory Commercial Farm
  • STE38-G Split Three Phase GPRS STS Smart Prepaid Energy Meter 3x230/400V 3x10(100)A Separate CIU Remote Recharge Token Kwh Meter For Africa Factory Commercial Farm
  • STE38-G Split Three Phase GPRS STS Smart Prepaid Energy Meter 3x230/400V 3x10(100)A Separate CIU Remote Recharge Token Kwh Meter For Africa Factory Commercial Farm

STE38-G Split Three Phase GPRS STS Smart Prepaid Energy Meter 3x230/400V 3x10(100)A Separate CIU Remote Recharge Token Kwh Meter For Africa Factory Commercial Farm

Item No.: STE38-G Prepaid Energy Meter
STE38-G split 3-phase GPRS STS prepaid meter, separate CIU, 3×230/400V 10(100)A Class1.0 IP54. Remote recharge & data monitor, anti-theft/overload protection, auto power cut for African factories & farms.
Add to Inquiry
Description
Description

1. Product Overview

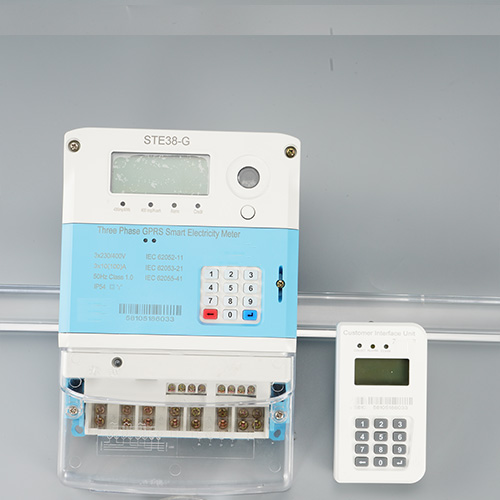

STE38-G split three phase GPRS STS smart prepayment energy meter adopts split structure, including three-phase main meter and independent CIU customer keypad unit. It fully complies with IEC62052-11, IEC62053-21, IEC62055-41 and international STS encryption standards.
Built-in GPRS cellular communication module, this three-phase meter supports dual recharge modes: remote cloud online recharge via mobile network, and offline local recharge by inputting 20-digit STS token on separate CIU keypad. Managers can remotely view real-time three-phase power consumption, residual balance, voltage abnormality and alarm records on cloud platform, and realize remote power cutoff/recovery for arrears users without site inspection.
With IP54 dustproof & waterproof flame retardant housing and full anti-theft protection system, it is specially developed for African industrial factories, agricultural farms, commercial stores and rural large-power three-phase power transformation projects.


2. Core Selling Points

  1. Three Phase High Load Design 3x10(100)A
    3*230/400V wide load range, support factory motors, farm irrigation equipment, commercial heavy-load electrical appliances, Class1.0 high precision stable metering.
  2. GPRS Dual Recharge Solution
    Online remote cloud recharge via GPRS; offline emergency recharge by STS token through independent CIU keypad, avoid service interruption caused by network failure.
  3. Split Separate CIU Operation Terminal
    Main meter body for cabinet installation, wall-mounted CIU with LCD & keypad, convenient for users to check balance and input recharge token.
  4. Remote Cloud Intelligent Management
    Background cloud system collects real-time three-phase power data, balance and fault alarm; one-click remote power cut & restore for overdue accounts, cut field operation cost largely.
  5. Universal STS Encrypted Token Protocol
    20-digit standard STS recharge token, compatible with mainstream African STS vending & management software, high encryption to prevent counterfeit tokens.
  6. All-round Safety & Anti-theft Protection
    Overload/overcurrent protection, reverse wiring alarm, anti-magnet tamper lockout, low credit pre-warning, automatic power cutoff when balance exhausted.
  7. IP54 Flame Retardant ABS Enclosure
    Dustproof and splash-proof, suitable for indoor distribution box and semi-outdoor installation of factories and farms.


3. Technical Specification Table

Item Parameter
Model STE38-G
Standard STS, IEC62052-11, IEC62053-21, IEC62055-41
Type Split Three Phase 4 Wire GPRS Smart Prepaid Meter
Rated Voltage & Frequency 3x230/400V, 50Hz
Current Spec 3x10(100)A
Accuracy Class Class 1.0
Protection Grade IP54
Communication Built-in GPRS cellular module
Recharge Mode 1 GPRS cloud remote online recharge
Recharge Mode 2 Separate CIU 10-digit keypad, 20-digit STS token
Installation Main meter: wall mount; CIU unit: wall mount
Shell Material Flame Retardant ABS Plastic
Core Functions Three-phase prepaid metering, cloud real-time data monitoring, remote power cut/restore, low credit alert, overload protection, anti-tamper anti-magnet, auto power off
Application African factories, agricultural farms, commercial shops, rural three-phase power grid reconstruction, large staff dormitory areas


4. Application Scenarios

  • African industrial factories, processing plants with three-phase heavy load equipment
  • Agricultural irrigation farms, livestock breeding farms
  • Large supermarkets, commercial plazas, rental industrial parks
  • Rural three-phase power grid renovation projects, village centralized power supply stations


5. FAQ

Q1: What load equipment is STE38-G suitable for?
A1: It is three-phase high-current meter 10(100)A, fit factory motors, farm irrigation pumps, commercial heavy power machines, not for single-phase household use.
Q2: Does it support both remote online recharge and offline STS token recharge?
A2: Yes, dual recharge modes. Remote GPRS recharge when network available; input STS token on CIU for offline emergency top-up.
Q3: Can management remotely control power supply of delinquent users?
A3: Yes, cloud background supports remote power cutoff and recovery to solve arrears management troubles.
Q4: Can we do OEM customized logo and export package?
A4: OEM & ODM service available, custom silk-print logo, neutral export cartons, cloud platform docking support.
