1. Product Overview

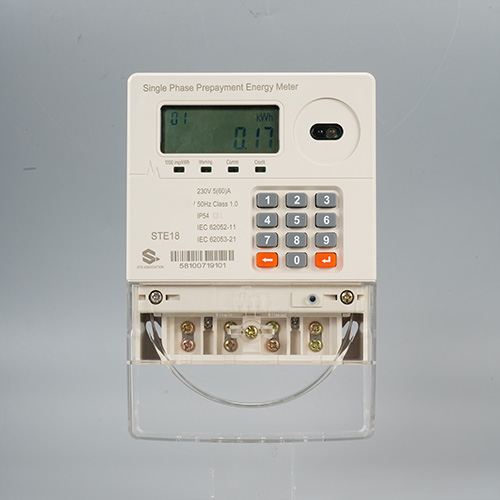

STE18 Single Phase STS Keypad Prepayment Energy Meter
The STE18 prepaid kWh meter complies with international STS standard IEC62052-11 & IEC62053-21, designed for residential rental housing, village power supply, small commercial premises.
Different from card-type prepaid meters, this model integrates a physical numeric keypad, users input 20-digit STS recharge token to complete electricity top-up without IC card. Large LCD screen clearly shows remaining credit, total power consumption, voltage & alarm codes.
With IP54 protection grade, overload, overcurrent, reverse wiring anti-tamper multi-protection system, automatic power cutoff when credit exhausted, greatly reduce electricity arrears risk for property management, power companies and landlords. It is the mainstream prepaid meter model favored by African power engineering projects.
2. Core Advantages
- STS International Standard Encryption Token
Fully compliant STS protocol, 20-digit universal recharge token, compatible with mainstream vending software, safe data encryption, avoid token counterfeiting.
- Built-in Physical 10-Digit Keypad
No IC card needed; tenants directly input recharge token on meter keypad to top up electricity, convenient for areas with imperfect card reading service.
- Clear Large LCD Digital Display
Real-time display cumulative kWh, remaining credit, voltage, alarm code, pulse indicator, easy reading under weak light.
- Multi-layer Safety Protection System
- Overload / overcurrent power protection
- Reverse wiring tamper alarm & power lockout
- Low credit pre-warning reminder
- Anti-magnet interference design
- IP54 Dustproof & Waterproof Enclosure
High-strength flame-retardant ABS shell, dust and splash resistant, suitable for indoor & semi-outdoor wall mounting installation.
- Wide Current Range 5(60)A
Wide load range, support household air conditioner, water heater, high-power electrical appliances at the same time, Class 1.0 high metering accuracy.
- Auto Power Cutoff Function
When remaining credit drops to zero, the meter automatically disconnects power supply; after token recharge, power recovers immediately without manual reset.
3. Technical Specification Table
| Item |
Parameter |
| Model |
STE18 |
| Standard |
STS IEC62052-11, IEC62053-21 |
| Phase |
Single Phase 2 Wire |
| Rated Voltage |
230V AC 50Hz |
| Rated Current |
5(60)A |
| Accuracy Class |
Class 1.0 |
| Protection Grade |
IP54 |
| Input Mode |
10-digit physical keypad, 20-digit STS token |
| Display |
Digital LCD Screen |
| Shell Material |
Flame Retardant ABS Plastic |
| Function |
Prepaid metering, low credit alarm, overload protection, anti-tamper, auto power off |
| Mounting |
DIN rail wall mounted |
| Application |
Rental house, residential building, Africa rural power project, small shop |
4. Application Scenarios
- Overseas residential rental apartments, private landlord housing
- Africa rural grid renovation, community power supply projects
- Small retail stores, homestays, factory staff dormitories
- Areas lacking IC card recharge terminal, remote villages
5. Working Principle
- Landlord / power station generates 20-digit STS recharge token through vending system after tenant payment.
- Tenant enters token code via the built-in keypad on STE18 meter.
- Meter decrypts token and adds corresponding electricity credit to account.
- Meter deducts power consumption in real time during electricity usage.
- When remaining credit reaches warning threshold, meter flashes reminder; balance zero → automatic power disconnection.
- After new token recharge, power supply restarts instantly.
6. FAQ
Q1: Does this meter support STS token system?
A1: Yes, STE18 fully meets international STS standard, compatible with all standard STS vending software widely used in Africa.
Q2: Is IC card required for recharging?
A2: No IC card needed. Equipped with independent numeric keypad, users only need to input 20-digit token code to complete top-up.
Q3: Can the meter resist magnet tampering?
A3: Built-in anti-magnetic interference module, external strong magnet trigger alarm and power lock to prevent electricity theft.
Q4: What’s the installation way?
A4: Standard DIN rail wall mounted, easy to install inside distribution box.
Q5: Can we do OEM customized logo and package?
A5: Yes, OEM & ODM available, custom silk-print logo, neutral export carton for bulk orders.
