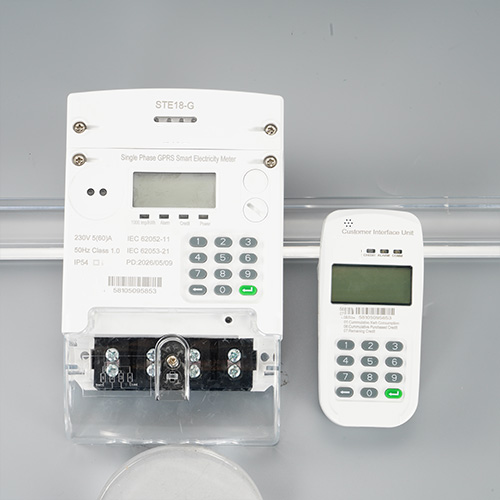

STE18-G Split STS GPRS Smart Prepaid Energy Meter Single Phase 5(80)A Remote Recharge Token Kwh Meter With Separate CIU For Africa Power Project
STE18-G Split STS GPRS Smart Prepaid Energy Meter Single Phase 5(80)A Remote Recharge Token Kwh Meter With Separate CIU For Africa Power Project STE18-G Split STS GPRS Smart Prepaid Energy Meter Single Phase 5(80)A Remote Recharge Token Kwh Meter With Separate CIU For Africa Power Project STE18-G Split STS GPRS Smart Prepaid Energy Meter Single Phase 5(80)A Remote Recharge Token Kwh Meter With Separate CIU For Africa Power Project STE18-G Split STS GPRS Smart Prepaid Energy Meter Single Phase 5(80)A Remote Recharge Token Kwh Meter With Separate CIU For Africa Power Project STE18-G Split STS GPRS Smart Prepaid Energy Meter Single Phase 5(80)A Remote Recharge Token Kwh Meter With Separate CIU For Africa Power Project STE18-G Split STS GPRS Smart Prepaid Energy Meter Single Phase 5(80)A Remote Recharge Token Kwh Meter With Separate CIU For Africa Power Project STE18-G Split STS GPRS Smart Prepaid Energy Meter Single Phase 5(80)A Remote Recharge Token Kwh Meter With Separate CIU For Africa Power Project STE18-G Split STS GPRS Smart Prepaid Energy Meter Single Phase 5(80)A Remote Recharge Token Kwh Meter With Separate CIU For Africa Power Project STE18-G Split STS GPRS Smart Prepaid Energy Meter Single Phase 5(80)A Remote Recharge Token Kwh Meter With Separate CIU For Africa Power Project STE18-G Split STS GPRS Smart Prepaid Energy Meter Single Phase 5(80)A Remote Recharge Token Kwh Meter With Separate CIU For Africa Power Project STE18-G Split STS GPRS Smart Prepaid Energy Meter Single Phase 5(80)A Remote Recharge Token Kwh Meter With Separate CIU For Africa Power Project STE18-G Split STS GPRS Smart Prepaid Energy Meter Single Phase 5(80)A Remote Recharge Token Kwh Meter With Separate CIU For Africa Power Project
  • STE18-G Split STS GPRS Smart Prepaid Energy Meter Single Phase 5(80)A Remote Recharge Token Kwh Meter With Separate CIU For Africa Power Project
  • STE18-G Split STS GPRS Smart Prepaid Energy Meter Single Phase 5(80)A Remote Recharge Token Kwh Meter With Separate CIU For Africa Power Project
  • STE18-G Split STS GPRS Smart Prepaid Energy Meter Single Phase 5(80)A Remote Recharge Token Kwh Meter With Separate CIU For Africa Power Project
  • STE18-G Split STS GPRS Smart Prepaid Energy Meter Single Phase 5(80)A Remote Recharge Token Kwh Meter With Separate CIU For Africa Power Project

STE18-G Split STS GPRS Smart Prepaid Energy Meter Single Phase 5(80)A Remote Recharge Token Kwh Meter With Separate CIU For Africa Power Project

Item No.: STE18-G
STE18-G split GPRS STS prepaid meter, IEC & STS certified. Separate CIU, GPRS remote recharge & data monitor, 230V 5(80)A Class1.0 IP54. Anti-theft/overload protection, auto power cut. For African grids & rental homes.
Add to Inquiry
Description
Description

1. Product Overview

STE18-G split single phase GPRS STS smart prepayment energy meter integrates cellular GPRS communication module, split design with main meter body and independent CIU keypad terminal. It fully complies with IEC62052-11, IEC62053-21 and international STS encryption standards.
Different from ordinary split prepaid meters, this model supports two recharge methods: remote cloud top-up through GPRS network and local 20-digit STS token input via CIU keypad. Property managers and power bureaus can remotely view real-time power consumption, remaining balance, abnormal alarm data on the cloud platform, remotely cut off or restore power without on-site operation.
With IP54 dustproof waterproof flame-retardant housing, multi-layer anti-theft safety protection, it solves remote power management difficulties in African villages, rental communities and scattered residential areas, being the mainstream intelligent prepaid meter for overseas grid reconstruction projects.


2. Core Selling Points

  1. GPRS Dual Recharge Mode (Remote + Local Token)
    Built-in GPRS module, tenants can recharge online remotely via cloud system; offline available to input STS 20-digit token on separate CIU keypad for emergency top-up, dual recharge solution avoids network failure trouble.
  2. Split Independent CIU Operation Terminal
    DIN rail main meter saves cabinet space, wall-mounted CIU with LCD screen and physical keypad for easy local token input and balance inquiry.
  3. Remote Cloud Monitoring & Remote Power Control
    Background cloud platform realizes real-time data collection: power usage, residual credit, voltage, alarm records; support remote power cut/restore for arrears users, greatly reduce field maintenance cost.
  4. International STS Encrypted Token System
    Universal 20-digit STS recharge token, compatible with all mainstream African STS vending management software, high encryption prevents counterfeit tokens.
  5. Wide Current Range & Stable Measurement
    Spec 5(80)A wide load capacity, match high-power household appliances; Class1.0 high metering accuracy ensures long-term stable energy statistics.
  6. All-round Safety & Anti-theft Protection
    Overload/overcurrent power-off, reverse wiring alarm, anti-magnet tamper lockout, low credit flashing pre-warning, multi-protection prevents electricity theft and equipment damage.
  7. IP54 Flame-retardant ABS Enclosure
    Dust and splash resistant, fit indoor and semi-outdoor wall-mounted distribution box installation.


3. Technical Specification Table

Item Parameter
Model STE18-G
Executive Standard STS, IEC62052-11, IEC62053-21
Product Type Split Single Phase 2 Wire GPRS Smart Prepaid Meter
Rated Voltage & Frequency 230V, 50Hz
Current Range 5(80)A
Accuracy Class Class 1.0
Protection Grade IP54
Communication Built-in GPRS cellular module
Recharge Method 1 Remote cloud online recharge via GPRS
Recharge Method 2 Separate CIU 10-digit keypad, 20-digit STS token
Installation Way Main meter: DIN rail mount; CIU unit: wall mount
Shell Material Flame Retardant ABS Plastic
Core Intelligent Functions Real-time cloud data monitoring, remote power cut/restore, prepaid metering, low credit alert, overload protection, anti-tamper anti-magnet, auto power off
Application Scenarios African rental apartments, rural power grid renovation, scattered remote villages, factory staff dormitories, small commercial shops


4. Application Scenarios

  • Africa rural scattered households and remote village power supply projects
  • Large rental apartment communities, landlord centralized property management
  • Factory dormitories, homestays, small retail shops
  • Power bureaus that need remote intelligent monitoring and arrears remote power control


5. FAQ

Q1: What charging ways does STE18-G support?
A1: Two ways: 1. Remote online recharge through GPRS cloud platform; 2. Offline recharge by entering 20-digit STS token on independent CIU keypad.
Q2: Can managers remotely turn off power for overdue users?
A2: Yes. Background cloud system supports one-click remote power cutoff and recovery, no need site visit.
Q3: Is this meter compatible with African STS vending software?
A3: Fully compliant with international STS protocol, matches mainstream token management systems widely used in Nigeria, Ghana, Kenya, Tanzania and other African countries.
Q4: Can we provide OEM customized service?
A4: OEM & ODM available, support silk-screen printing brand logo, customized neutral export cartons, matching cloud platform docking service.
