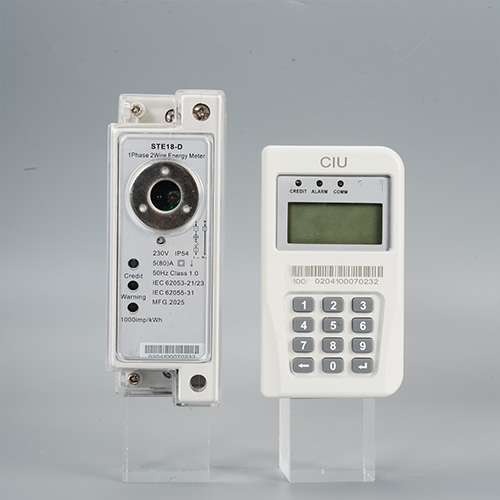

STE18-D Split STS Prepaid Energy Meter Single Phase DIN Rail Separate CIU Keypad Token Prepayment Kwh Meter 230V 5(80)A For Africa Rental House
STE18-D Split STS Prepaid Energy Meter Single Phase DIN Rail Separate CIU Keypad Token Prepayment Kwh Meter 230V 5(80)A For Africa Rental House STE18-D Split STS Prepaid Energy Meter Single Phase DIN Rail Separate CIU Keypad Token Prepayment Kwh Meter 230V 5(80)A For Africa Rental House STE18-D Split STS Prepaid Energy Meter Single Phase DIN Rail Separate CIU Keypad Token Prepayment Kwh Meter 230V 5(80)A For Africa Rental House STE18-D Split STS Prepaid Energy Meter Single Phase DIN Rail Separate CIU Keypad Token Prepayment Kwh Meter 230V 5(80)A For Africa Rental House STE18-D Split STS Prepaid Energy Meter Single Phase DIN Rail Separate CIU Keypad Token Prepayment Kwh Meter 230V 5(80)A For Africa Rental House STE18-D Split STS Prepaid Energy Meter Single Phase DIN Rail Separate CIU Keypad Token Prepayment Kwh Meter 230V 5(80)A For Africa Rental House STE18-D Split STS Prepaid Energy Meter Single Phase DIN Rail Separate CIU Keypad Token Prepayment Kwh Meter 230V 5(80)A For Africa Rental House STE18-D Split STS Prepaid Energy Meter Single Phase DIN Rail Separate CIU Keypad Token Prepayment Kwh Meter 230V 5(80)A For Africa Rental House STE18-D Split STS Prepaid Energy Meter Single Phase DIN Rail Separate CIU Keypad Token Prepayment Kwh Meter 230V 5(80)A For Africa Rental House STE18-D Split STS Prepaid Energy Meter Single Phase DIN Rail Separate CIU Keypad Token Prepayment Kwh Meter 230V 5(80)A For Africa Rental House STE18-D Split STS Prepaid Energy Meter Single Phase DIN Rail Separate CIU Keypad Token Prepayment Kwh Meter 230V 5(80)A For Africa Rental House STE18-D Split STS Prepaid Energy Meter Single Phase DIN Rail Separate CIU Keypad Token Prepayment Kwh Meter 230V 5(80)A For Africa Rental House STE18-D Split STS Prepaid Energy Meter Single Phase DIN Rail Separate CIU Keypad Token Prepayment Kwh Meter 230V 5(80)A For Africa Rental House STE18-D Split STS Prepaid Energy Meter Single Phase DIN Rail Separate CIU Keypad Token Prepayment Kwh Meter 230V 5(80)A For Africa Rental House STE18-D Split STS Prepaid Energy Meter Single Phase DIN Rail Separate CIU Keypad Token Prepayment Kwh Meter 230V 5(80)A For Africa Rental House
  • STE18-D Split STS Prepaid Energy Meter Single Phase DIN Rail Separate CIU Keypad Token Prepayment Kwh Meter 230V 5(80)A For Africa Rental House
  • STE18-D Split STS Prepaid Energy Meter Single Phase DIN Rail Separate CIU Keypad Token Prepayment Kwh Meter 230V 5(80)A For Africa Rental House
  • STE18-D Split STS Prepaid Energy Meter Single Phase DIN Rail Separate CIU Keypad Token Prepayment Kwh Meter 230V 5(80)A For Africa Rental House
  • STE18-D Split STS Prepaid Energy Meter Single Phase DIN Rail Separate CIU Keypad Token Prepayment Kwh Meter 230V 5(80)A For Africa Rental House
  • STE18-D Split STS Prepaid Energy Meter Single Phase DIN Rail Separate CIU Keypad Token Prepayment Kwh Meter 230V 5(80)A For Africa Rental House

STE18-D Split STS Prepaid Energy Meter Single Phase DIN Rail Separate CIU Keypad Token Prepayment Kwh Meter 230V 5(80)A For Africa Rental House

Item No.: STE18-D Energy Meter
STE18-D split STS prepaid meter, IEC & STS certified. Separate CIU keypad, DIN rail mount, 230V 5(80)A Class1.0 IP54. Low credit alert, anti-theft/overload protection, auto power cut. For African homes & rural grids.
Add to Inquiry
Description
Description

1. Product Overview

STE18-D split single phase STS prepayment energy meter adopts split structure, including main meter body and independent CIU (Customer Interface Unit) with numeric keypad. Fully compliant with IEC62053-21, IEC62055-31 and international STS token encryption standard.
The DIN rail mounted main meter can be installed inside distribution boxes, while the CIU keypad can be placed at easy-to-reach positions for tenants to input 20-digit recharge tokens, solving the inconvenience of integrated meter installation limitation.
It supports real-time power consumption measurement, low credit warning, overload, reverse wiring and anti-magnet anti-theft functions. The meter will automatically cut off power when balance is exhausted, greatly reducing electricity arrears risk for landlords and power bureaus, which is a popular split prepaid solution for African power renovation projects.


2. Core Selling Points

  1. Split Separate Design (Meter + Independent CIU Keypad)
    Separate main meter and CIU operation terminal; the thin DIN rail meter saves cabinet space, the CIU can be mounted on wall for easy token input by users.
  2. International STS Encrypted Token System
    20-digit universal STS recharge token, compatible with mainstream African vending software, high data encryption to prevent counterfeit tokens.
  3. Wide Current Range 5(80)A & High Precision
    5(80)A wide load capacity to support high-power household appliances, Class 1.0 stable metering accuracy for long-term use.
  4. Comprehensive Multi-protection Functions
    Overload/overcurrent cut-off, reverse wiring alarm, anti-magnet tamper lockout, low credit pre-warning reminder.
  5. Compact DIN Rail Installation
    Ultra-thin main meter body, standard DIN rail installation, fits small distribution boxes widely used in Africa residential buildings.
  6. Auto Power Cutoff After Credit Zero
    Power supply automatically disconnects when balance runs out; power recovers immediately after valid STS token is entered on CIU keypad.


3. Technical Specifications

Item Parameter
Model STE18-D
Standard STS, IEC62053-21, IEC62055-31
Type Split Single Phase 2 Wire Prepaid Meter
Rated Voltage & Frequency 230V, 50Hz
Current Spec 5(80)A
Accuracy Class Class 1.0
Protection Grade IP54
Recharge Mode Separate CIU 10-digit keypad, 20-digit STS token
Installation Main meter: DIN rail mount; CIU: wall mount
Shell Material Flame Retardant ABS Plastic
Core Functions Prepaid metering, low credit alert, overload protection, anti-tamper anti-magnet, auto power off
Application African rental apartments, rural grid reconstruction, small shops, staff dormitories


4. Application Scenarios

  • Africa residential rental houses, private landlord apartments
  • Rural power grid upgrade and community power supply projects
  • Factory dormitories, small retail stores, remote villages
  • Projects with limited cabinet space, requiring separated operation keypad


5. FAQ

Q1: What is the difference between STE18-D and integrated STE18?
A1: STE18-D is split type with separate CIU keypad, the meter body is DIN rail thin type; STE18 is integrated all-in-one meter with built-in keypad.
Q2: Is the CIU communication stable with the main meter?
A2: Wired stable connection between CIU and meter, no signal loss during token transmission.
Q3: Does it match STS vending software in Nigeria, Ghana, Kenya?
A3: Fully compliant with international STS standard, compatible with all mainstream African token sales systems.
Q4: Can we customize logo and neutral export packaging?
A4: OEM & ODM service available, customized silk print logo and cartons for bulk orders.
