Core Functions
Electricity Metering: Accurately records forward active electricity consumption.

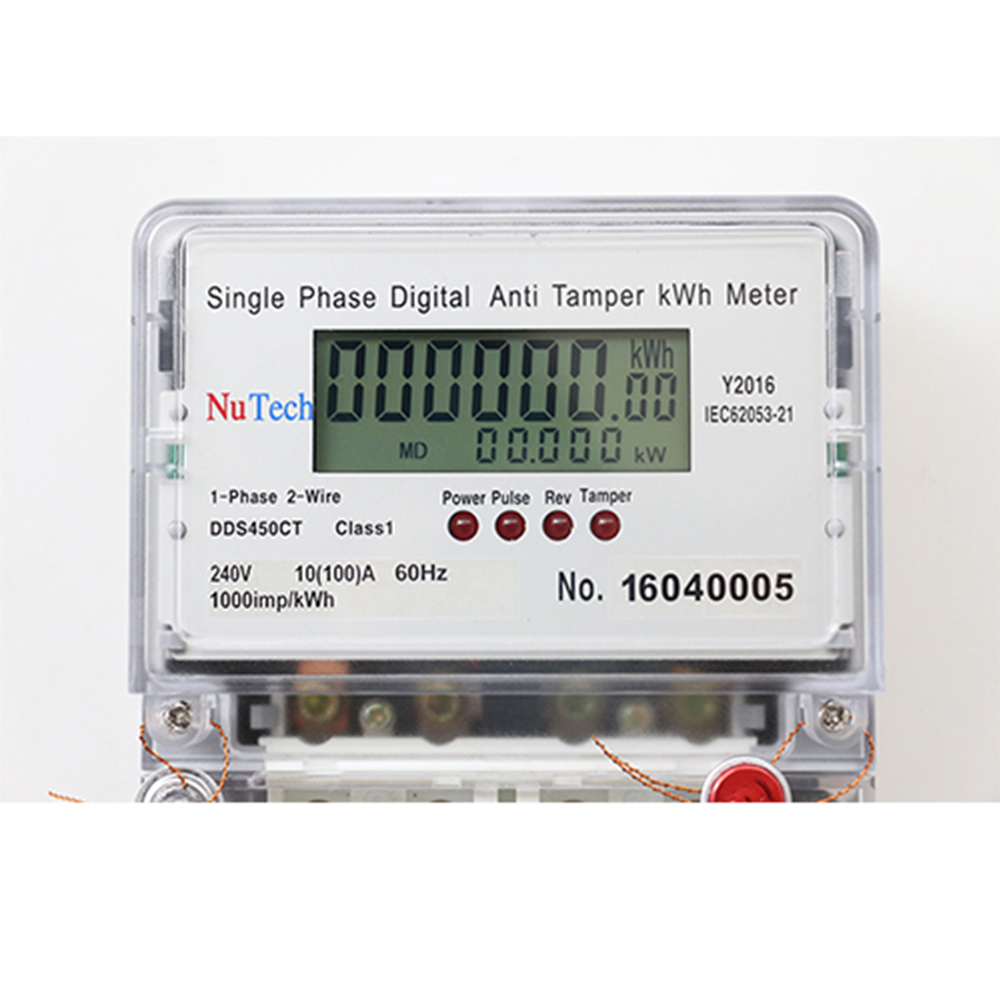

Data Display: Mechanical counter or LCD screen displays current electricity consumption, voltage, current, and other parameters.
Communication Interface: Some models support RS485, infrared, or carrier communication for remote meter reading.

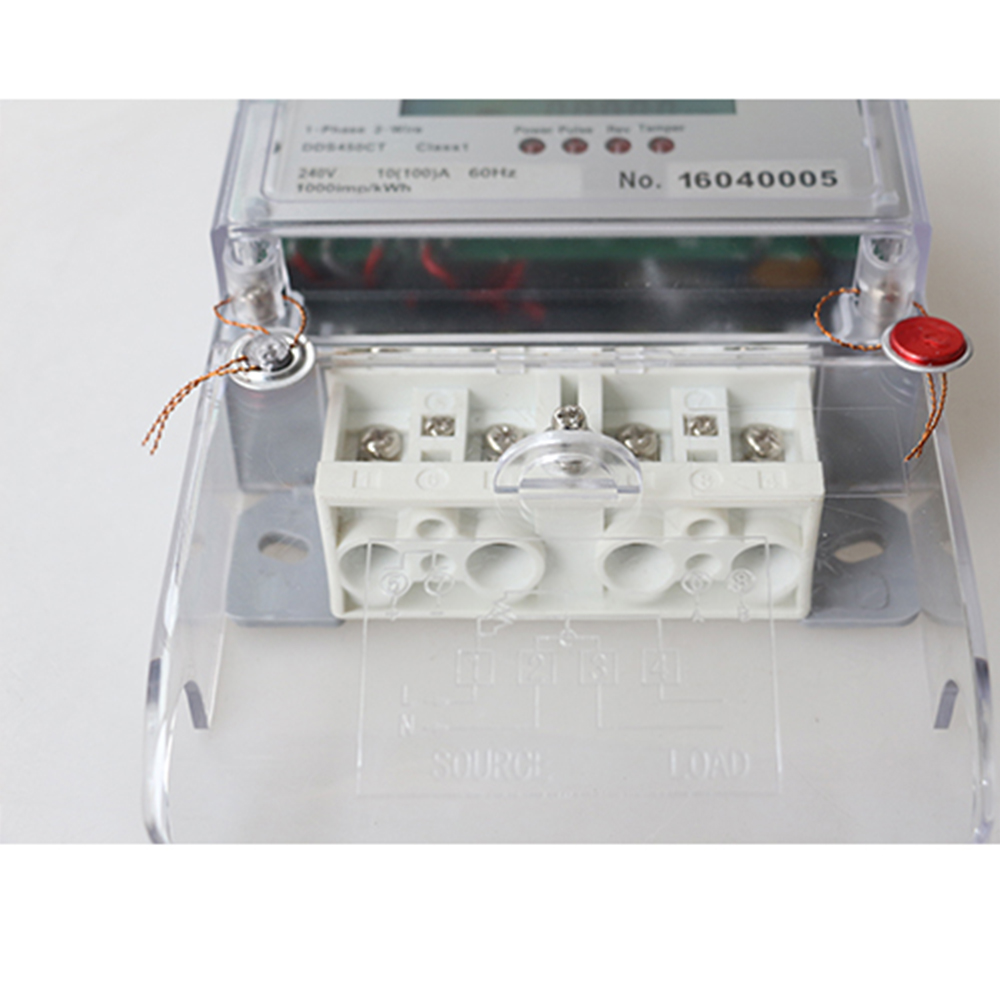

Anti-theft Design: Features magnetic interference detection and terminal cover opening/closing recording functions.
Prepaid Function: Optional IC card or remote recharge.
Rated Voltage: 240V AC Allowed Deviation: ±20%
Rated Current: 10(100)A (bracketed value indicates maximum current)
Accuracy Class: Class 1.0, suitable for billing applications.
Pulse Constant: 1000 Imp/kWh Each kWh consumed causes the pulse indicator light to flash 1000 times.
