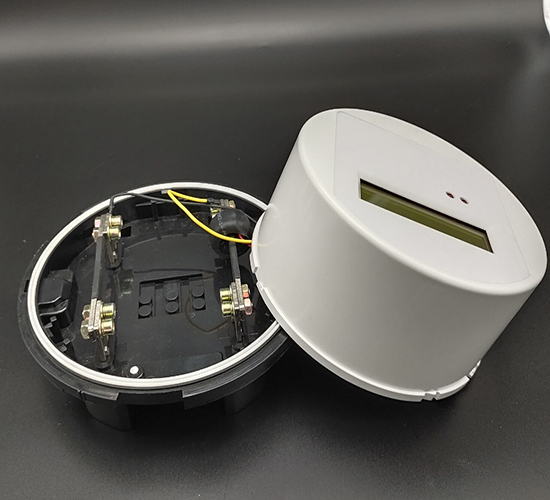

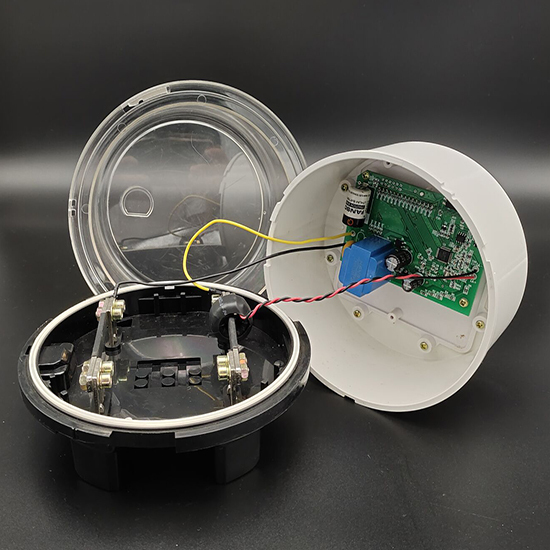

Single phase 2 wire CL100 30/100A Ansi Socket Meter FM 1S 2W I210type
Single phase 2 wire CL100 30/100A Ansi Socket Meter FM 1S 2W I210type Single phase 2 wire CL100 30/100A Ansi Socket Meter FM 1S 2W I210type Single phase 2 wire CL100 30/100A Ansi Socket Meter FM 1S 2W I210type Single phase 2 wire CL100 30/100A Ansi Socket Meter FM 1S 2W I210type Single phase 2 wire CL100 30/100A Ansi Socket Meter FM 1S 2W I210type Single phase 2 wire CL100 30/100A Ansi Socket Meter FM 1S 2W I210type Single phase 2 wire CL100 30/100A Ansi Socket Meter FM 1S 2W I210type Single phase 2 wire CL100 30/100A Ansi Socket Meter FM 1S 2W I210type Single phase 2 wire CL100 30/100A Ansi Socket Meter FM 1S 2W I210type Single phase 2 wire CL100 30/100A Ansi Socket Meter FM 1S 2W I210type Single phase 2 wire CL100 30/100A Ansi Socket Meter FM 1S 2W I210type Single phase 2 wire CL100 30/100A Ansi Socket Meter FM 1S 2W I210type Single phase 2 wire CL100 30/100A Ansi Socket Meter FM 1S 2W I210type Single phase 2 wire CL100 30/100A Ansi Socket Meter FM 1S 2W I210type Single phase 2 wire CL100 30/100A Ansi Socket Meter FM 1S 2W I210type Single phase 2 wire CL100 30/100A Ansi Socket Meter FM 1S 2W I210type Single phase 2 wire CL100 30/100A Ansi Socket Meter FM 1S 2W I210type Single phase 2 wire CL100 30/100A Ansi Socket Meter FM 1S 2W I210type Single phase 2 wire CL100 30/100A Ansi Socket Meter FM 1S 2W I210type Single phase 2 wire CL100 30/100A Ansi Socket Meter FM 1S 2W I210type Single phase 2 wire CL100 30/100A Ansi Socket Meter FM 1S 2W I210type
  • Single phase 2 wire CL100 30/100A Ansi Socket Meter FM 1S 2W I210type
  • Single phase 2 wire CL100 30/100A Ansi Socket Meter FM 1S 2W I210type
  • Single phase 2 wire CL100 30/100A Ansi Socket Meter FM 1S 2W I210type
  • Single phase 2 wire CL100 30/100A Ansi Socket Meter FM 1S 2W I210type
  • Single phase 2 wire CL100 30/100A Ansi Socket Meter FM 1S 2W I210type
  • Single phase 2 wire CL100 30/100A Ansi Socket Meter FM 1S 2W I210type
  • Single phase 2 wire CL100 30/100A Ansi Socket Meter FM 1S 2W I210type

Single phase 2 wire CL100 30/100A Ansi Socket Meter FM 1S 2W I210type

Item No.: 00152
Single Phase 2WIRE Socket Type kwh Meter
ANSI Class 0.5 Accuracy
Arrow indicator for energy direction flow
Visible LED
Instantaneous value measurement and display(kw.V A)r
Contains total active energy register and  active energy register
Add to Inquiry
Description
Description
Single phase 2 wire CL100 30/100A Ansi Socket Meter FM 1S 2W I210type
Main Functionalitiesr
Single Phase Socket Type kwh Meter
 ANSI Class 0.5 Accuracy
 Arrow indicator for energy direction flow
Visible LED
 Instantaneous value measurement and display(kw.V A)r
 Contains total active energy register and  active energy register
Available Meter Forms
FM 1S . 2W . CLASS 100
FM 1S . 2W . CLASS 200
 FM 2S . 3W . CLASS 100
FM 2S . 3W . CLASS 200
Anti-tamper Features ( optional )
Missing Neutral - Detect and record energy consumption even with missing neutral on input side , load side , or both Bypassed - Detect and record actual energy consumption even when one line is bypassed
oppositive -detect and oppositive record  energy flowas normal energy consumption
ValAccuracyue ValCA0.5 ue
Voltage
Reference voltage
Operating voltage range
240V
70%-120%Un (168V – 288V)
Current
Test amperes (TA)
Current classes
Starting current
15A ,30A
100A ,200A
50mA for CL100, 100mA for CL200
Frequency 60HZ
Power Consumption
Power consumption in voltage circuit (active)
Power consumption in voltage circuit (apparent)
Power consumption in current circuit
≤2 W
≤10 VA
≤1 VA
Meter Constant 1000 imp/kWh
Wiring System 2 wire line to neutral (240V – 0V)
2 wire line to line no neutral (120V – 120V) (center tap on distribution
transformer’s secondary should not be connected to ground)
3 wire line to line with neutral (120V – 0V – 120V)
LED Visible IR LED test pulse for energy
Communication Interface
Optical communication
Infrared communication
Modbus/RS485		 IEC62056-21 encryption
NO .IRDA
IEC
Temperature
Operation range
Limit range for storage and transport		 -25℃～65℃
-40℃～70℃

Humidity Up to 95% non-condensing
Housing
Protection degree
Meter cover 		IP65 (Outdoor Installation)
Opaque polycarbonate(PC) + glass fiber with a transparent window
Dimension 175mm x 175mm x 130mm
Software Supply ,and install computer
