Repairing of Induction Furnace High-Power Water-Cooled Capacitor
Captivating on the skills of our highly dedicated team of professionals, we are involved in offering the Repairing and Maintenance of High-Frequency Water-Cooled Capacitor. To better serve our clients, we have the equipment and knowledgeable Engineer and Technician to repair the High-Frequency water-cooled capacitor. High-Power Water-Cooled Capacitors are extensively used in all types of Induction melting and heating furnace and in many other applications.
Some of the following problems with your capacitors can be attended to seamlessly by us:
- Stud damage
- Electrically shorted capacitor
- Mechanical failure of the capacitor
- Insulator Damage
- Oil Leakage problem
- Need of the process of oil re-filling
- Many other problems
In house facility to process this work
- Highly qualified technical staff to find out failure phenomena
- Taking all sorts of care that will not damage another part which is Healthy
- Processing oil before re-filling
- Huge stock of capacitor oil
- Welding facility
- Ready stock of all kinds of insulators, seal, Brass / Copper Hardware, etc.

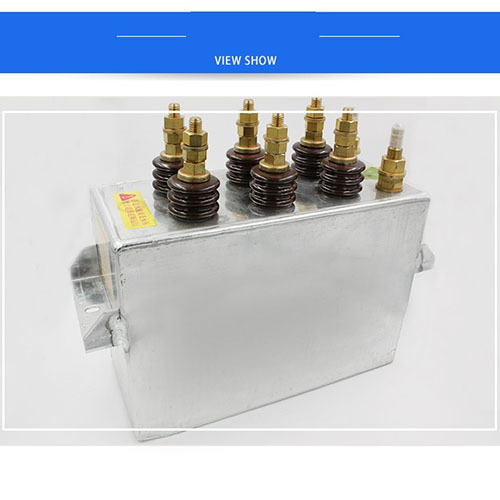

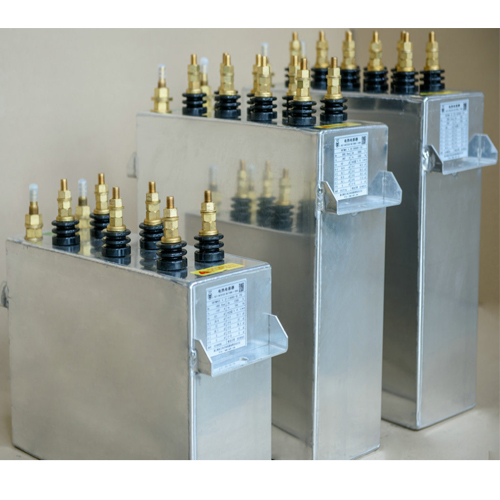

RFM Type 100Khz Water Cooled Capacitor for smelting furnace
Water Cooled Designs

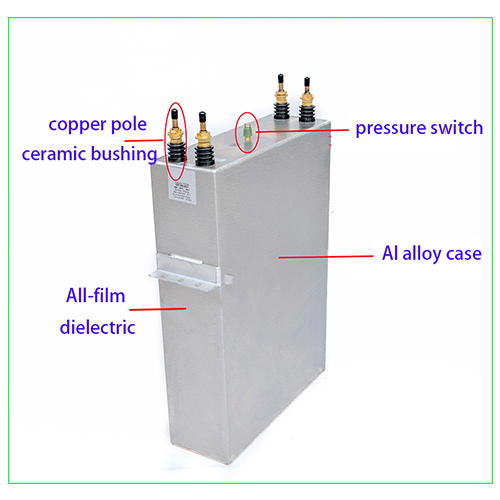

Description/Specification/Construction:
• Designed for use in AC tank circuits or specialty DC filter circuits
• All-film or metallized film dielectric
• Tin-plated, copper terminals rated for up to 300 Amps continuous
• Electrical grade phenolic bushings for indoor application
• Long life, 20 year nominal life
• Low loss, less than 0.3 watts per kVAR up to 5 kHz;
less than 0.5 watts per kVAR up to 50 kHz
• Special dielectric system designs for high efficiency
• GE dielectric fluids; Dielektrol VI for metallized delectrics, Dielektrol VIIa for
all-film dielectrics
• Designs that employ a pressure switch are supplied with a N/C, 12 PSI,
non-resetting switch. All metallized dielectric designs require a pressure
switch

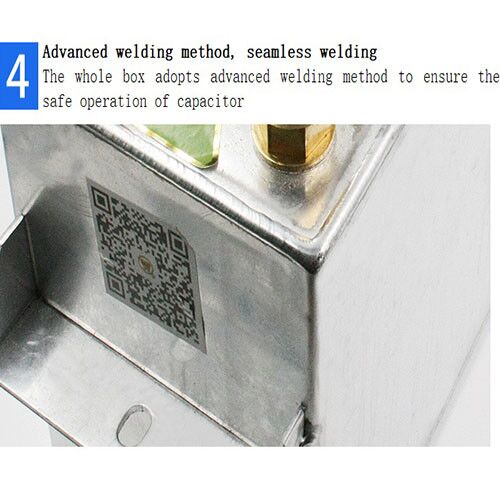

• Case design: textured aluminum using 0.60 in. (15.25mm) to 0.90 in.
(22.85mm) aluminum, with 0.125 in. (3.18mm) base and cover
• Brackets when included have .50 in. (12.7mm) and 0.625 in. (15.9mm)
mounting slots
• GE requires that equipment manufacturers use the recommendations
specified in bulletin GEH-2733 concerning outlet water temperature, water
flow rate and water cleanliness in design and operation of their equipment
