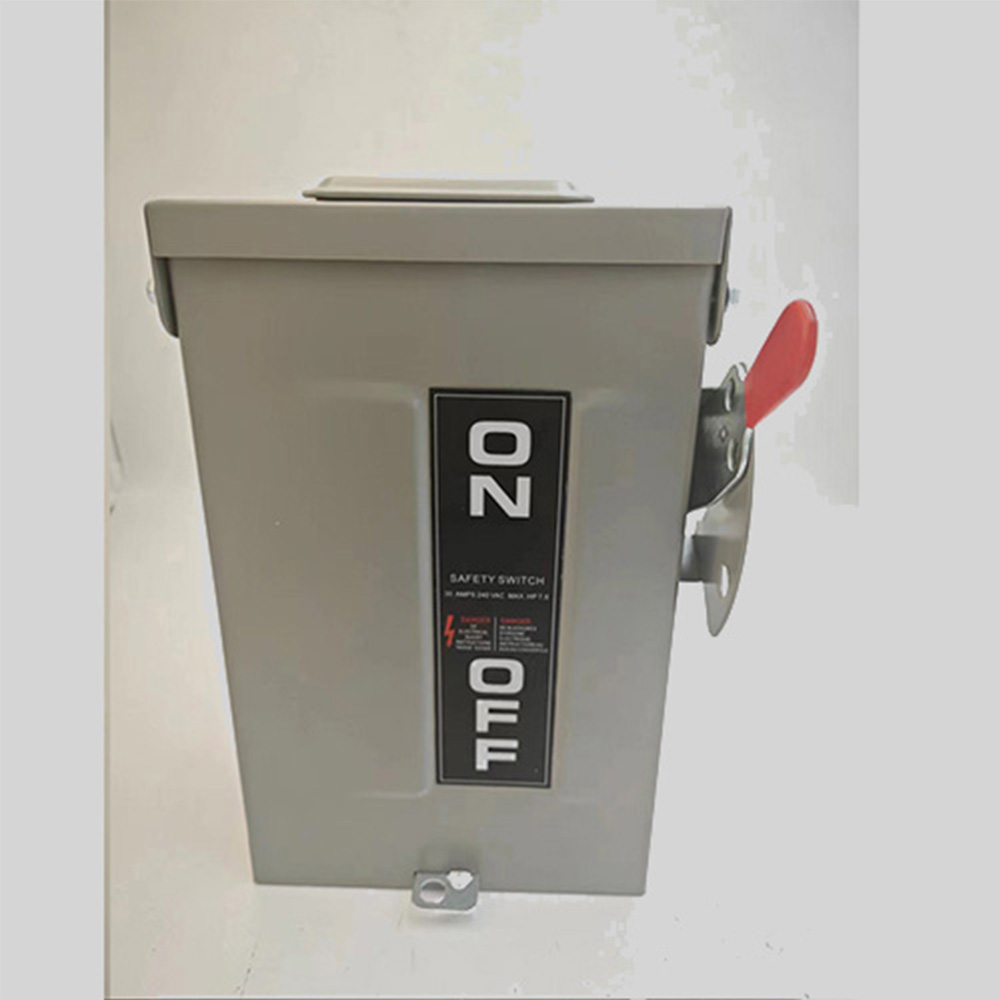

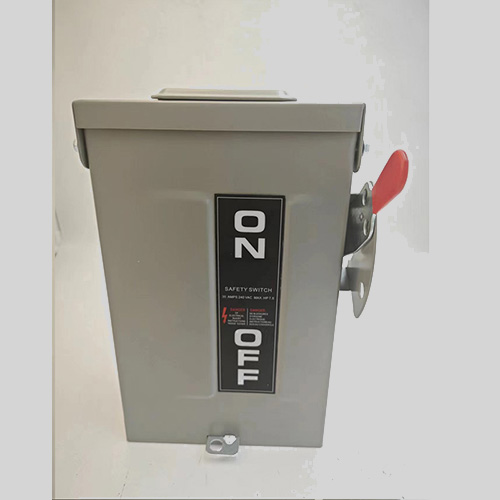

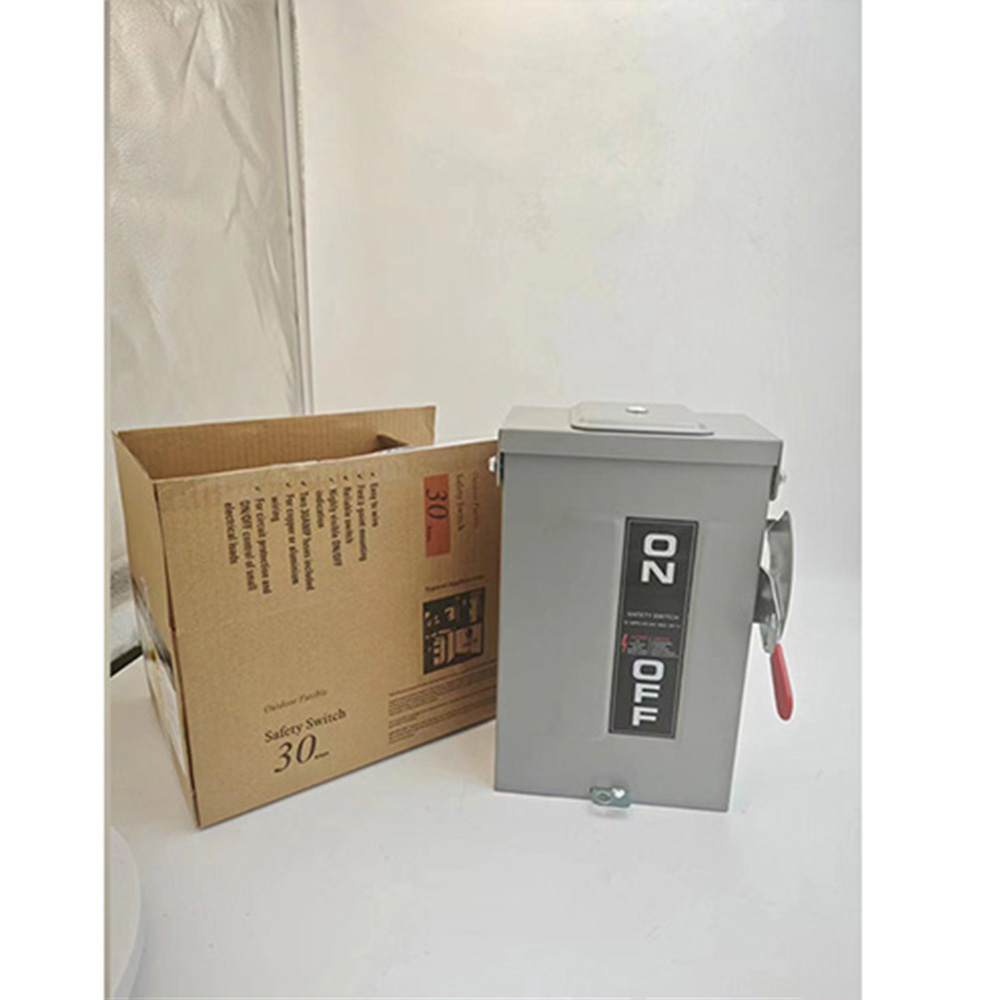

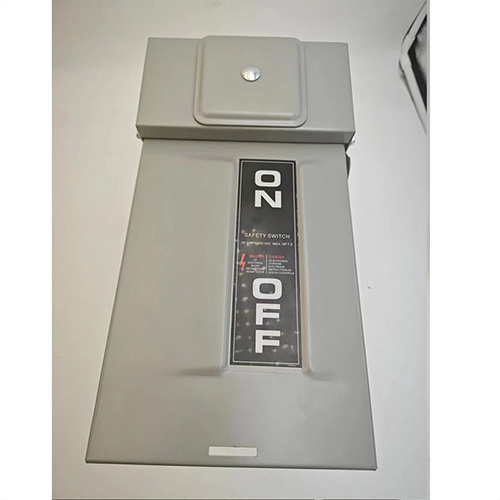

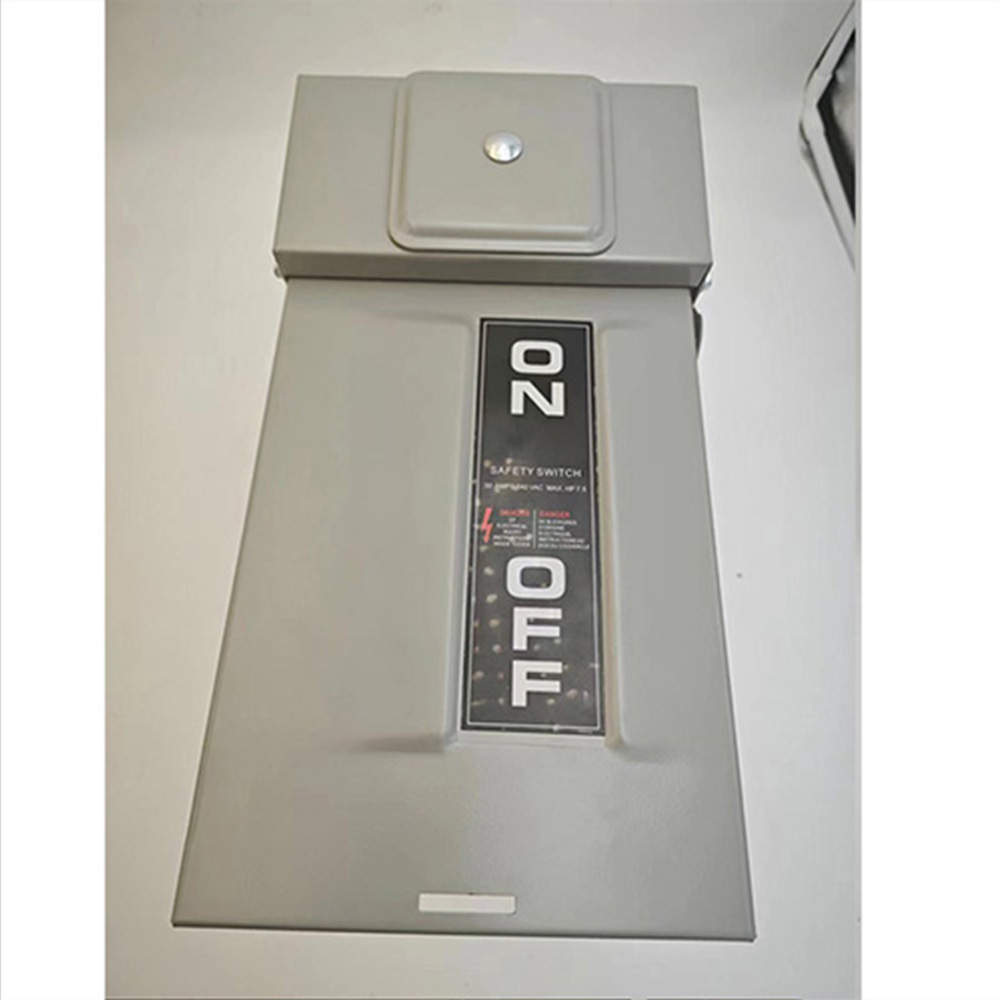

Name: Safety Switch Change Over Switch with Fuse Outdoor 30A
Brand: My Web Site
SKU: Outdoor Fusible 2P 30A
Availability: InStock
Rating: 5 (1 reviews)

Home > Load center > Safety Switch

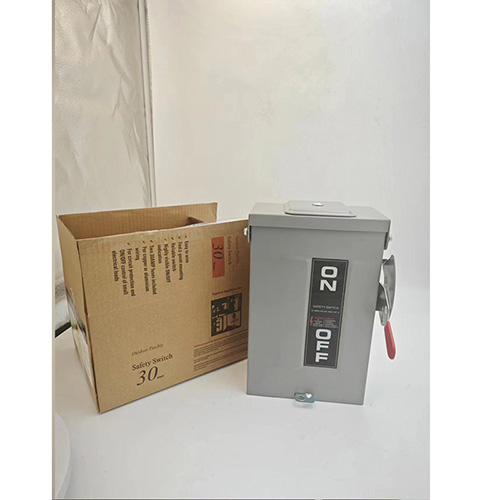

Safety Switch Change Over Switch with Fuse Outdoor 30A

Description

Product Description

Application:
☆Designed for residential or light commercial application where duty is not severe 60°Cand 75'C conductor rating ;

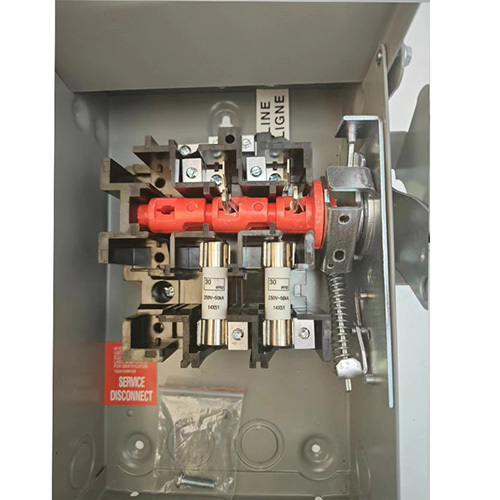

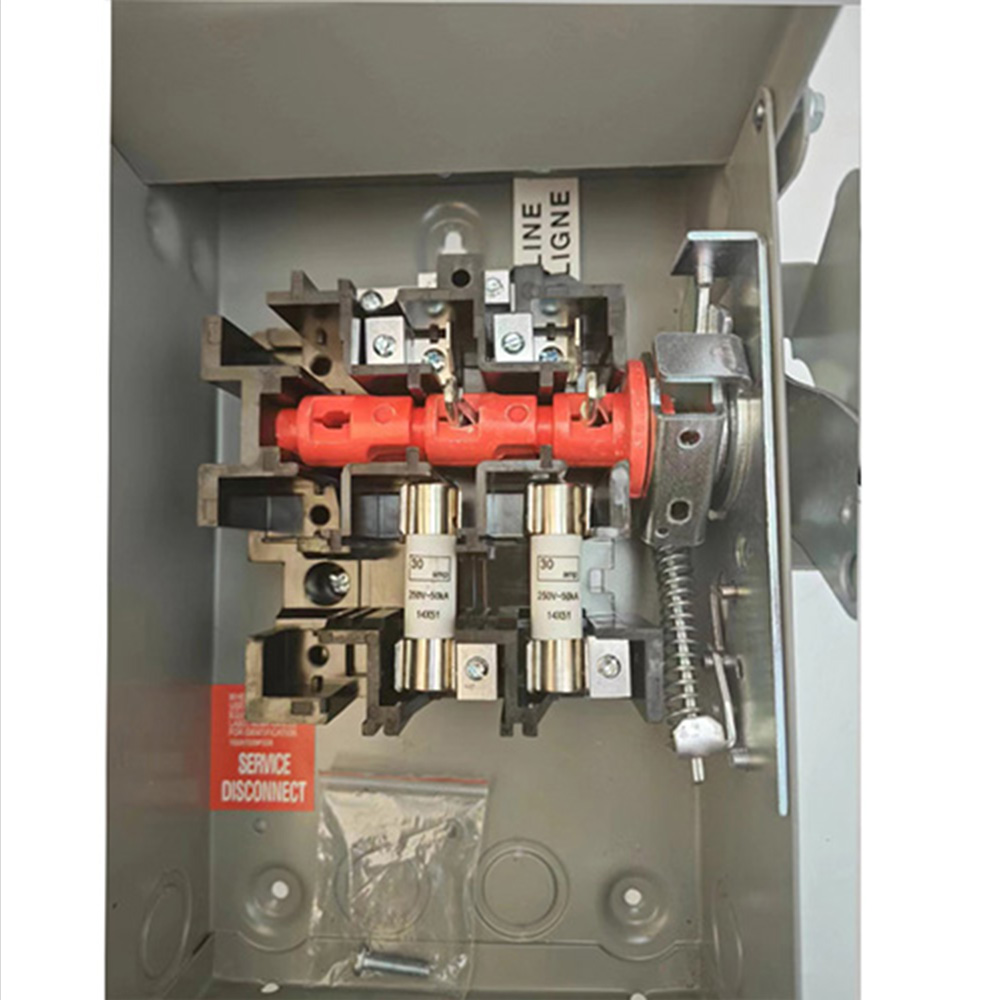

☆Spring-reinforced fuse clips are suitable for class H,K or R fuses-assure reliable contact
and cool operation.*
Direct-drive,quick-make,quick-break machanism ensures long life and positive ON/OF!indication.☆ Suitable for using as service entrance equipment when installed in accordance with
nation electracal code.

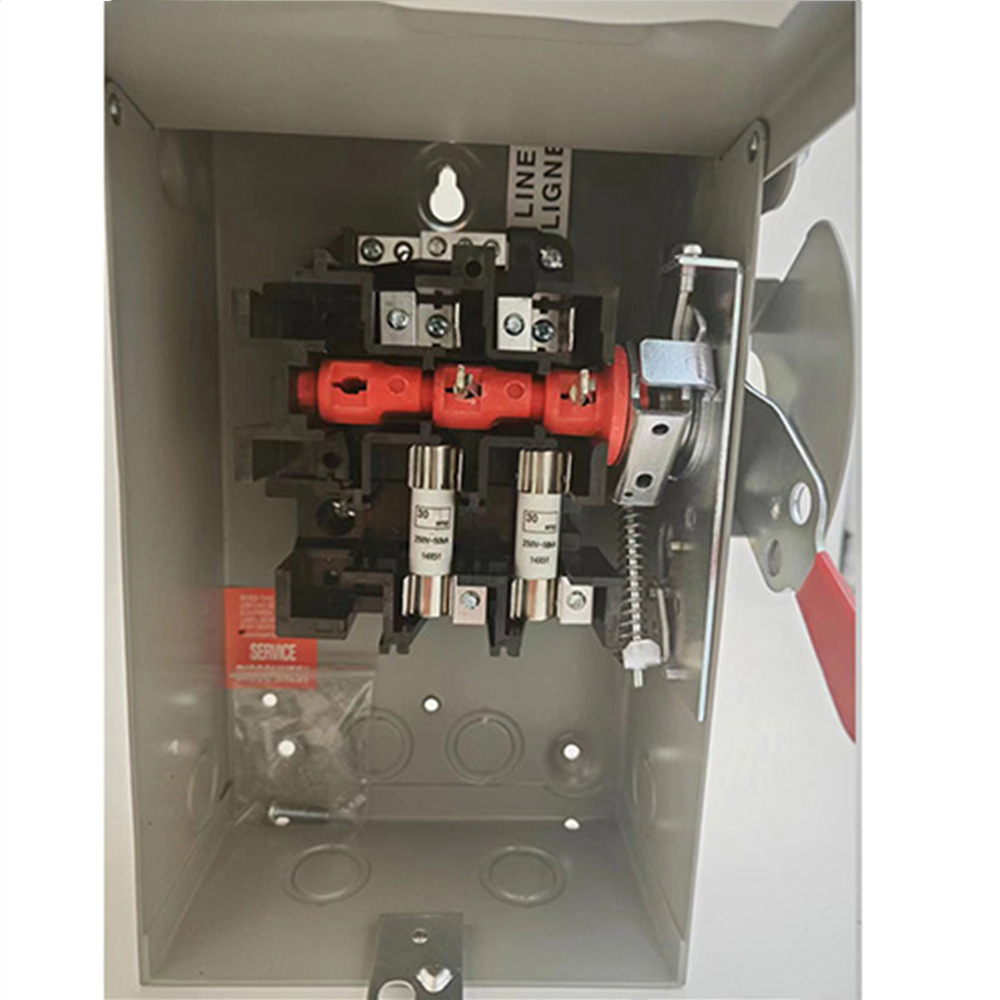

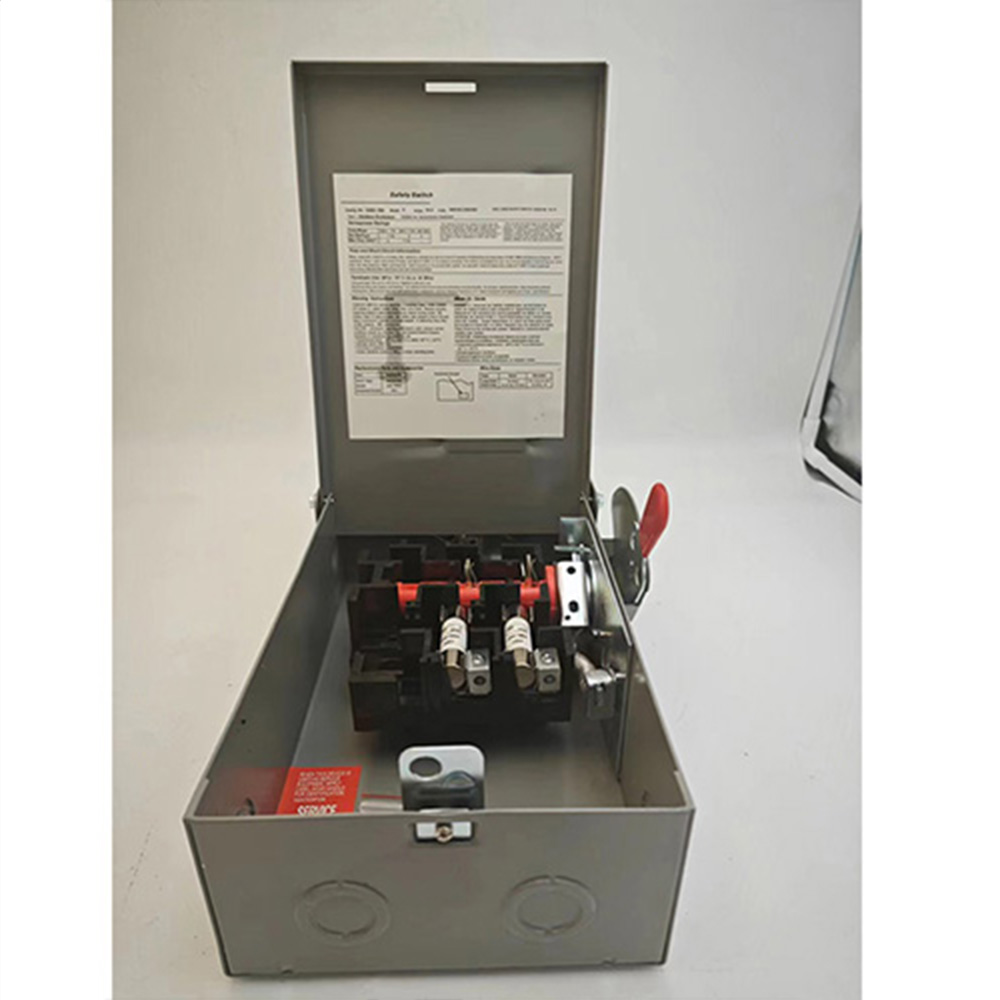

☆ Removable interior and ample gutter space make installation and wiring quickand easy

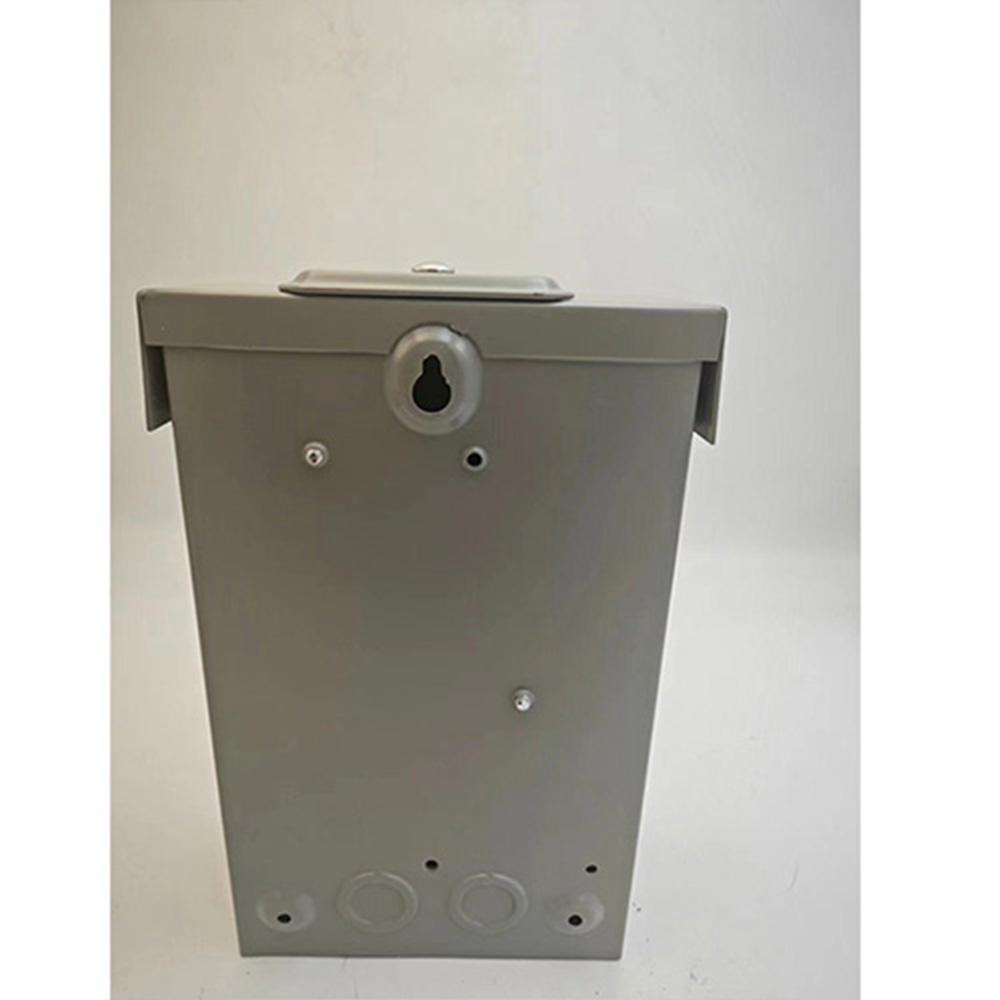

☆Straight-through wiring and multiple knockouts speed installation

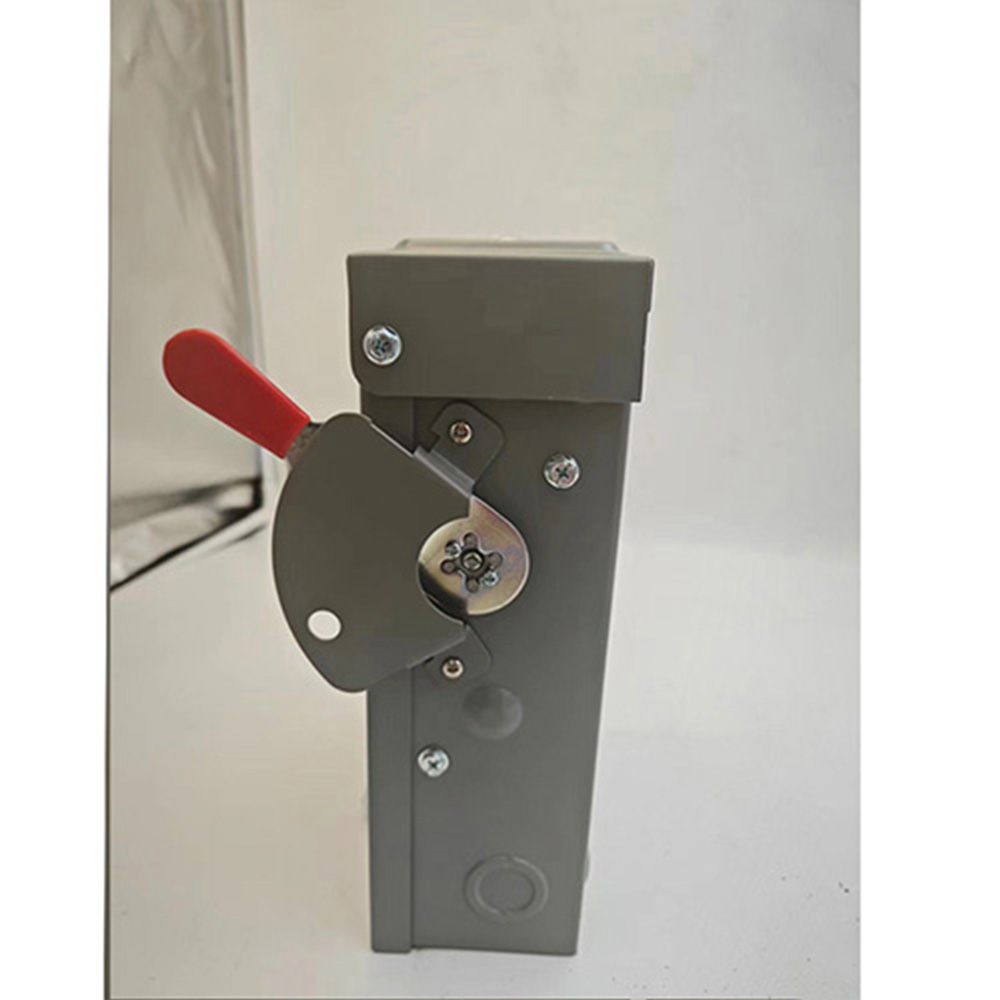

☆Padlocking device allows for added security
Specification

Schematic Diagram	Product Number	Indoor Or Outdoor Front Type	Main Ampere Rating	Horsepower Ratings
				240 Volts		DC
				NEC Standard	Time Delay	125Volts	250Volts
				1-ph 3-ph	1-ph 3-ph

Fusible
Two-pole,120/240 and 240 volts as; 250 volts dc(30-100Amps only)
Three-wire SN,240 volts ac

RES1-30S-I	Indoor	30	1.5	3	3	7.5	2	5
RES1-60S-I	Indoor	60	-	7.5	10	15	3	10
RES1-30S-0	outdoor	30	1.5	3	3	7.5	2	5
RES1-60S-0	outdoor	60	3	7.5	10	15	3	10

Three-pole, 240 volts ac

RES1-30T-I	Indoor	30	1.5	3	3	7.5	-	5
RES1-60T-I	Indoor	60	3	7.5	10	15	3	10
RES1-30T-0	outdoor	30	1.5	3	3	7.5	-	5
RES1-60T-0	outdoor	60	3	7.5	10	15	3	10

Four-wire SN, 208/120 AND 240 volts ac

RES1-30T-I	Indoor	30	1.5	3	3	7.5	-	5
RES1-60T-I	Indoor	60	3	7.5	10	15	3	10
RES1-30T-0	outdoor	30	1.5	3	3	7.5	-	5
RES1-60T-0	outdoor	60	3	7.5	10	15	3	10
