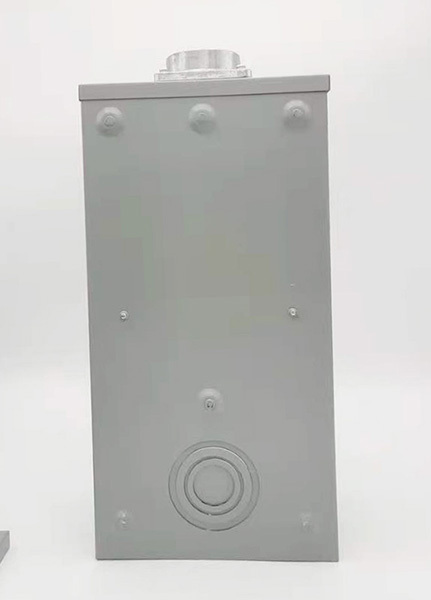

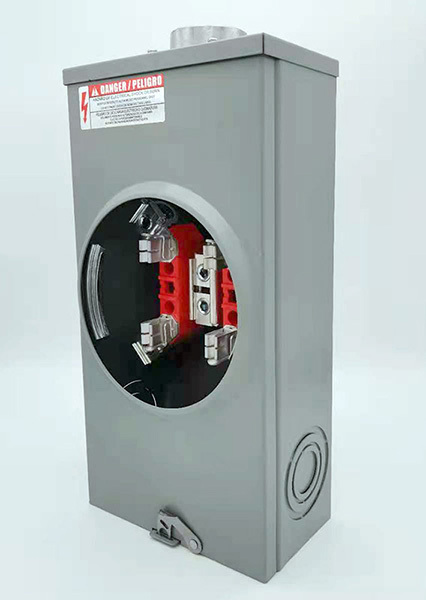

Honduras NEMA type 3R 200A 4jaws Square Meter base with 2" hub

Item No.: 00114
Honduras  NEMA type 3R 200A 4jaws Square Meter base  with 2" hub
1 square base thickness : Hot dip galvanized steel
2 Meter socket jaws Cooper /brass
3 Ansi meter base terminal :Bakelite
4 Screw :metal /copper
Description
Description
Honduras  NEMA type 3R 200A 4jaws Square Meter base  with 2" hub

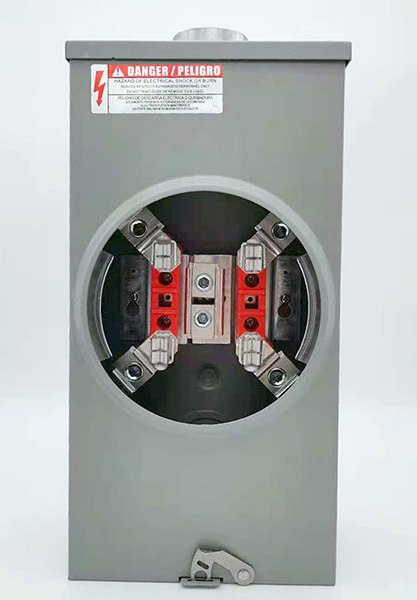

NEMA type 3R enclosure constructed from #16 galvanized steel sheet with light gray-powder coat finish ,units are furnished with 2" hub opening as standard                                  1.interior:with meter guides for easy meter insertion, double action terminal jaws (deep-type with reinforced spring clip)made of high strength copper alloy designed for positive engagement with meter blade, mouting base is made of glass polyester for phenolic terminal blaock with excellent dielectric properties  , terminal are tin-plated copper all alloy and rated for 200amp and 600volts design,terminal connection capacity will accommodate wire from AWG#6 to 4/0 AWG with removable terminal clamps for easy laying of wire into the terminal connector , tin-plated hexagonal head dome point screw  2. mounting bodies: provided with at least for 4pcs 1/4" mounting hold at the back with 1/8" of mounting base between the back of the socket enclosure and mounting surface . neutral terminal is mechanically riveted and bolted to the socket enclosure to assure firm and positive electrical bonding

3.cover :units are provided with one piece ringless type cover with light gray powder coat paint finish with stainless steel swinging latch with sealing provision using wire seals  pladlock type seals or padlock to secure the cover to the socket body

4.international standard such as NEMA 250 ANSI CL12.7 UL.414
Application Meter Socket 4jaws 200A
Standard Non UL Listed;Type 3R
Voltage Rating 600 Volts Alternating Current
Amperage Rating 100 Continuous Ampere
Phase 1 Phase
Frequency Rating 60 hertz
Size 42cm L*20.6cm W*9.8cm H
Cutout Size No Main Breaker
Terminal Single Mechnical
Insulation Glass Polyester
Mounting Surface Mount
Enclosure Aluminum With Powder Coat Finish
Jaw Quantity 4 Terminal
Bypass Type No Bypass
Number Of Meter Positions 1 Position
Equipment Ground Triplex Ground
Hub Opening 1 Inch Hub-2inch
Line Side Wire Range 6 AWG-350kcmil
Load Side Wire Range 12-1 AWG
