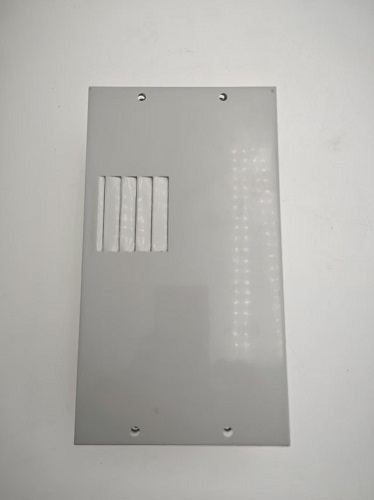

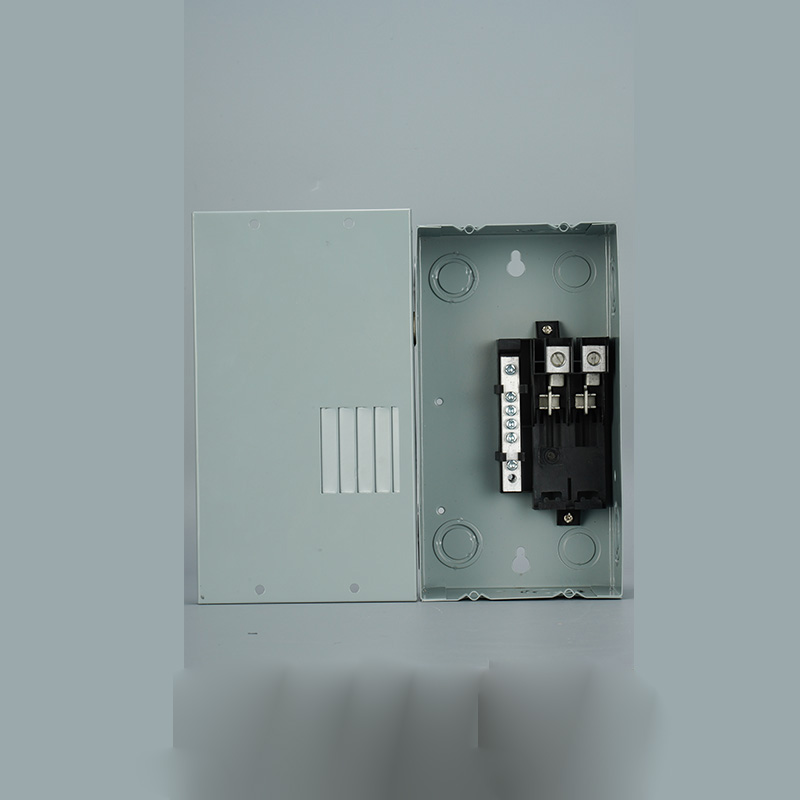

Product Description
Application:GE series Load Centers have been designed for safe, reliable distribution and control of electrical power as service entrance equipment in residential, commercial and light industrial premises. They are available in Plug-in designs for indoor applications
Rating:70A to 125A continuous current rating , 120V/240V ,single phase
Enclosure:0.8~1.5mm Steel, light gray powder coat finish

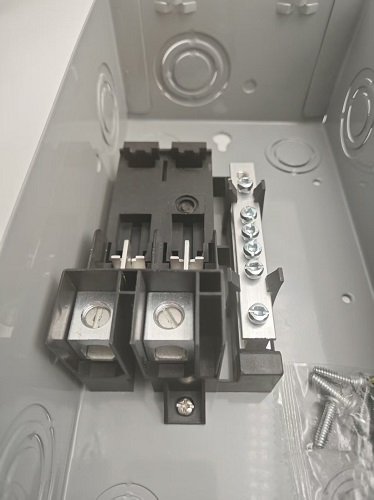

Bus Bar:coppy alloy or Brass tin plated,
Block:made of ABS material or Bakelite

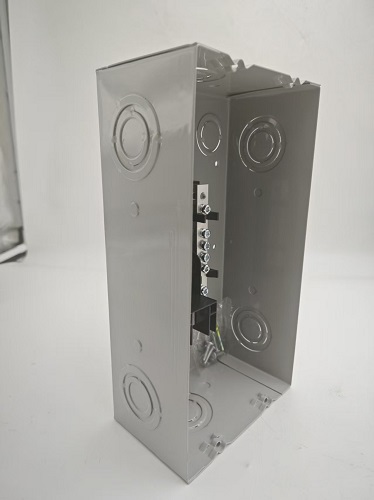

Knockouts:provided on back and side of Enclosure

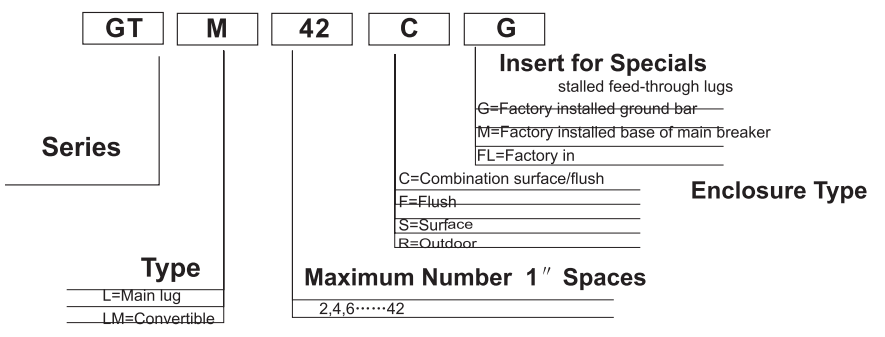

Product Number Guide
Feature:
Constructed from high-quality electro-galvanized steel plate with a thickness of 0.9-1.5 mm.
Features a matte polyester powder coating finish.

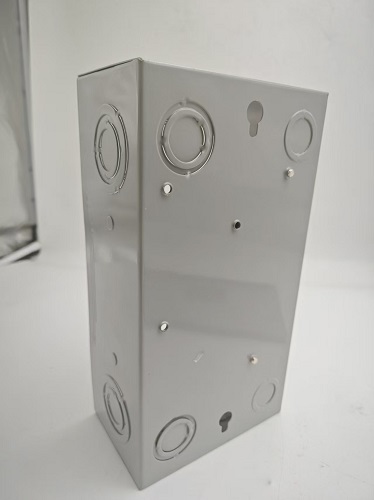

Perimeter of the enclosure includes pre-drilled mounting holes.
Compatible with GE Q-Series circuit breakers, including GE-specific 1/2-inch THQP models.
Suitable for single-phase, three-wire 120/240-volt AC circuits with a rated current up to 225 amps. Can be converted to a main circuit breaker.
Wider enclosure design facilitates wiring and enhances heat dissipation efficiency.
Available in both flush-mount and surface-mount configurations.
Cable entry openings are provided at both the top and bottom.
