Type CH Plug-on Circuit Breaker
Quick-make, quick-break switch mechanism combined with inverse time element tripping operation and tripfree handle design. This type circuit breakers trip to the OFF position, eliminating nuisance callbacks. The CHF family also includes a trip flag to differentiate between a trip and the breaker being turned off. The thermal-magnetic trip curve avoids nuisance tripping on mild overloads while reacting almost instantaneously to severe short-circuit conditions. Multipole breakers have internal common trip connection to operate all poles simultaneously. Handles are marked with ON-OFF indication and ampere rating of the breaker.

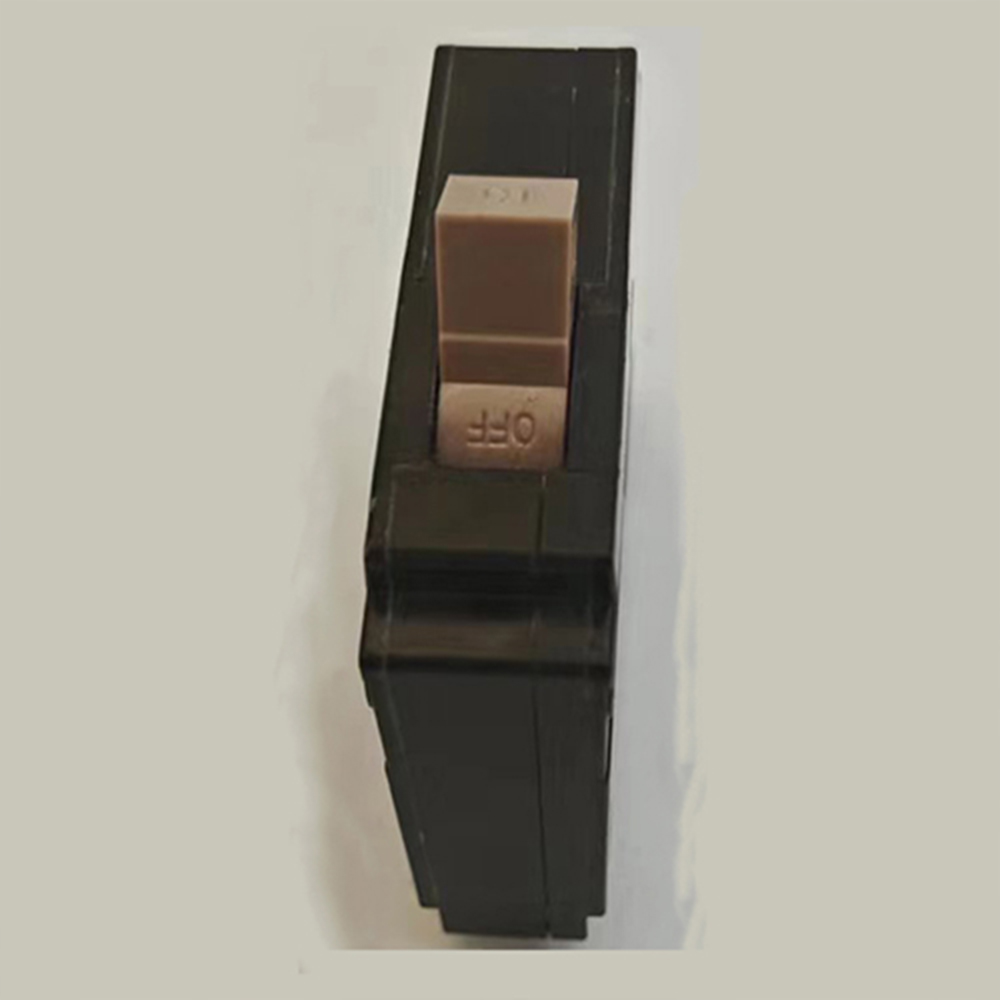

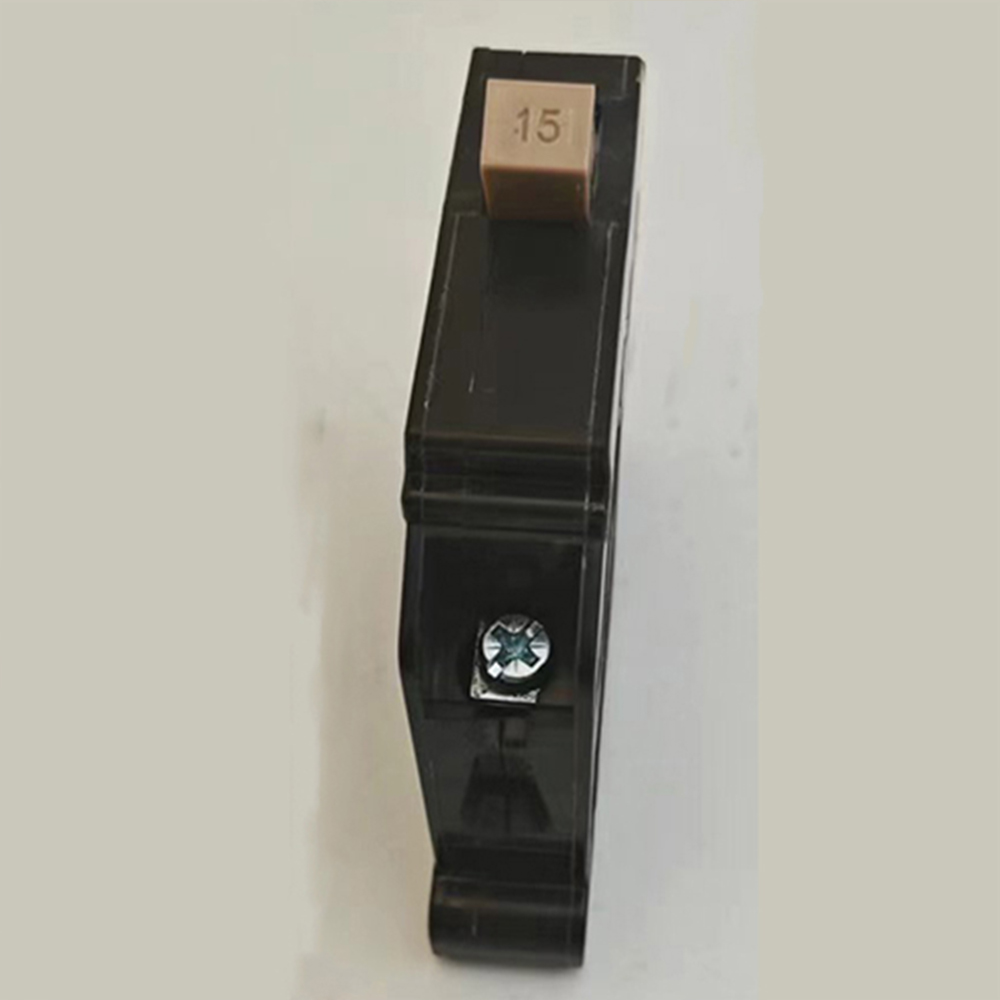

1.3/4 inch size Plug-in CH Circuit breaker
2.The frame of a CH circuit breaker is typically made of a strong insulating material, such as a thermoset composite resin or glass-polyester

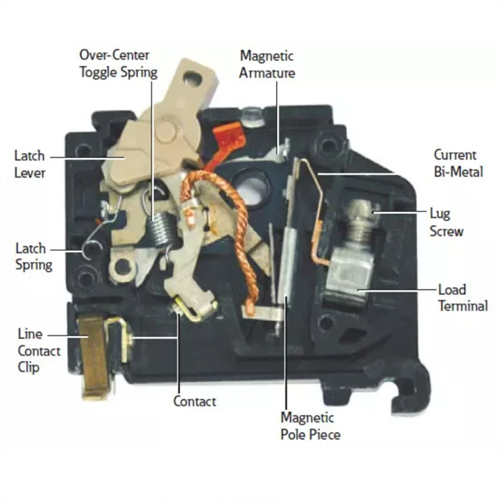

3.Mini circuit breaker Internal components:
Contacts: These are crucial for making and breaking the electrical circuit. They are often made from:
Silver-Flash Plated Copper Bus:
Silver Alloys:
Silver Tungsten (AgW):
Silver Tungsten Carbide (AgWC):
Silver Graphite (AgC):
Arc Chutes:
Insulating Sidewalls:
Refractory Metal-Oxide Coating:
Thermal Overload Protection:
