Dominica Transparent terminal 100A Ansi Socket Round Meter Base 6 Jaws

Item No.: 00110

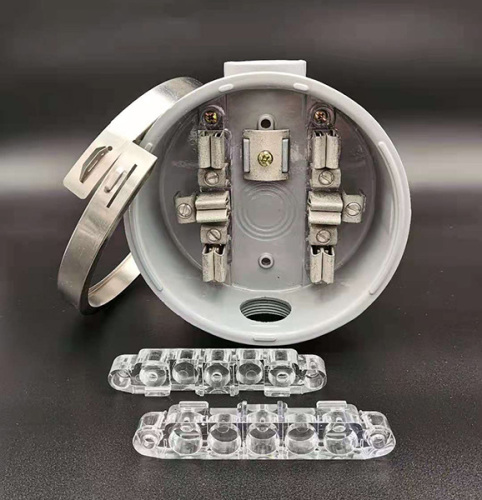

100A Round Meter socket 6 jaws
1 Round meter base case aluminum
2 Meter socket jaws Cooper /brass
3 Ansi meter base terminal Bakelite
4 Ground connector Metal /brass
5 Ring 201 stainless
Description
Description

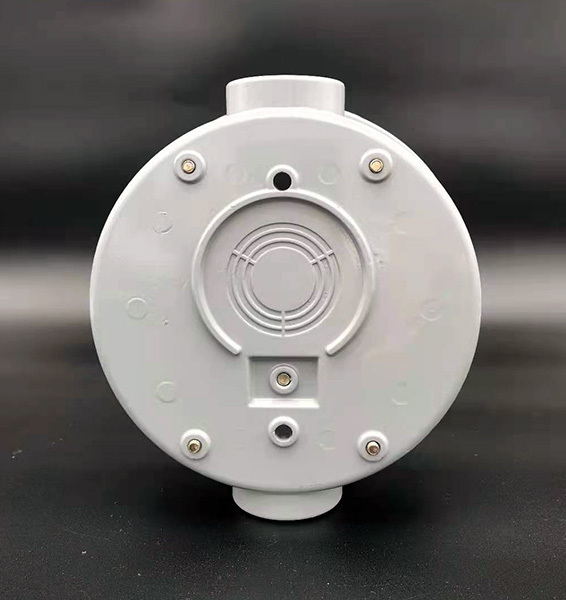

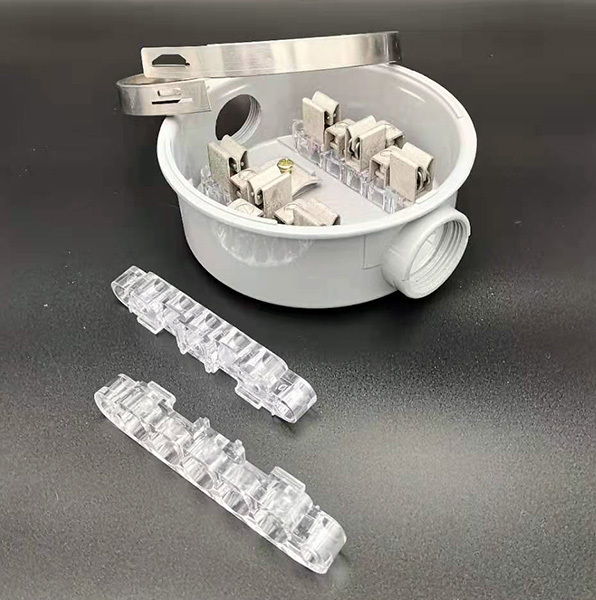

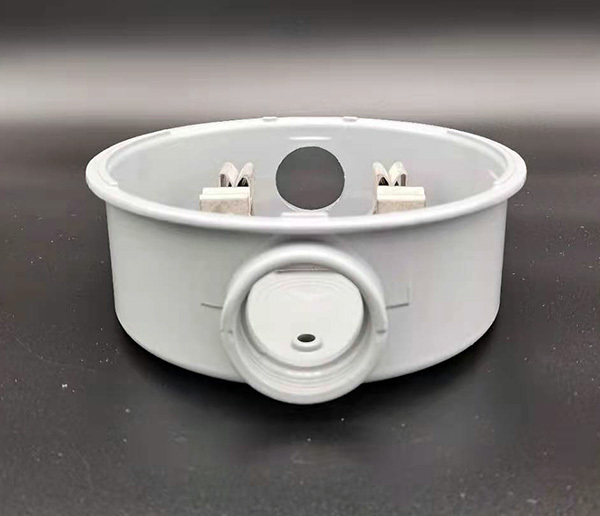

Dominica Transparent terminal 100A Ansi Socket Round Meter Base 6 Jaws
round meter socket 6 terminals with two sets of 1 inch hub opening located at the top and bottom as standard , extended terminal socket jaws with stainless steel snap lock sealing ring
specification

width 6.625inch
height 7.125inch
application meter socket
standard type 3R
Voltage rating 100 continuous amper
phase 1 phase
frequency rated 60hz
size 2.25L*6.25W*7.125H
Cutout size no main breaker
cable entry over head
terminal single mechanical
insulation glass polyester
mounting surface mount
enclosure aluminum with powder coat finish
bypass type no bypass
number of meter postions 1 postion
equipment ground triplex ground
hub opening 1 inch hub
line side wire range 12-1 awg
load side wire range 12-1 awg
