Have you ever noticed that square or rectangular box on the exterior wall of a house? That's the heart of electricity metering—the meter socket. It's not just the "home" for the electricity meter; it's the critical safety gateway connecting the external power grid to your home's internal circuits. Today, let's delve into a professional-grade product within this category: the 320A meter socket.
I. The Core of Meter Sockets: Two Working Principles, One Critical Threshold
Meter sockets are primarily divided into two major types based on current measurement methods, and "320A" is a significant dividing line between them.
| Feature | Self-Contained (Direct-Connect) | Transformer-Rated |
|---|---|---|
| Working Principle | Current passes directly through the meter for measurement. | Large current is proportionally reduced by a Current Transformer (CT) to a small current for measurement. |
| Application Scenario | Continuous load current below 225A (corresponding to ~320A or lower momentary current). This is the most common use for a 320A socket. | Continuous loads exceeding 225A (typically requiring 400A+ service) in large commercial or industrial facilities. |
| With a 320A Socket | A standard meter can be directly installed; economical and common. | The 320A socket acts merely as a mounting base; actual metering is performed by rear-end transformers. |
In simple terms: If your calculated continuous operating current is 225A (~130 kW) or less, you would typically use a direct-connect meter with a 320A socket. If it exceeds this, you must adopt the more professional transformer-rated metering solution.
II. Do I Actually Need a 320A Meter Socket?
A 320A socket is not standard for homes. Ordinary residences typically use 100A or 200A meter sockets. You might need to consider a 320A socket only if one of the following conditions is met:
Calculated Load: Total continuous power consumption exceeds 130kW (three-phase estimate).
Equipment Present: Multiple electric vehicle fast chargers, large central air conditioning, commercial kitchen, swimming pool with circulation/heating system, home data center, etc.
Building Scale: A large residential property over 500 square meters or centralized power supply for multiple villas.
Simple Estimation: For three-phase power, you can roughly estimate using 1 kilowatt (kW) of power ≈ 1.5 amperes (A) of current. For example, a total load of 80kW ≈ 120A.
III. Professional-Grade Features: Getting to Know a 320A Meter Socket

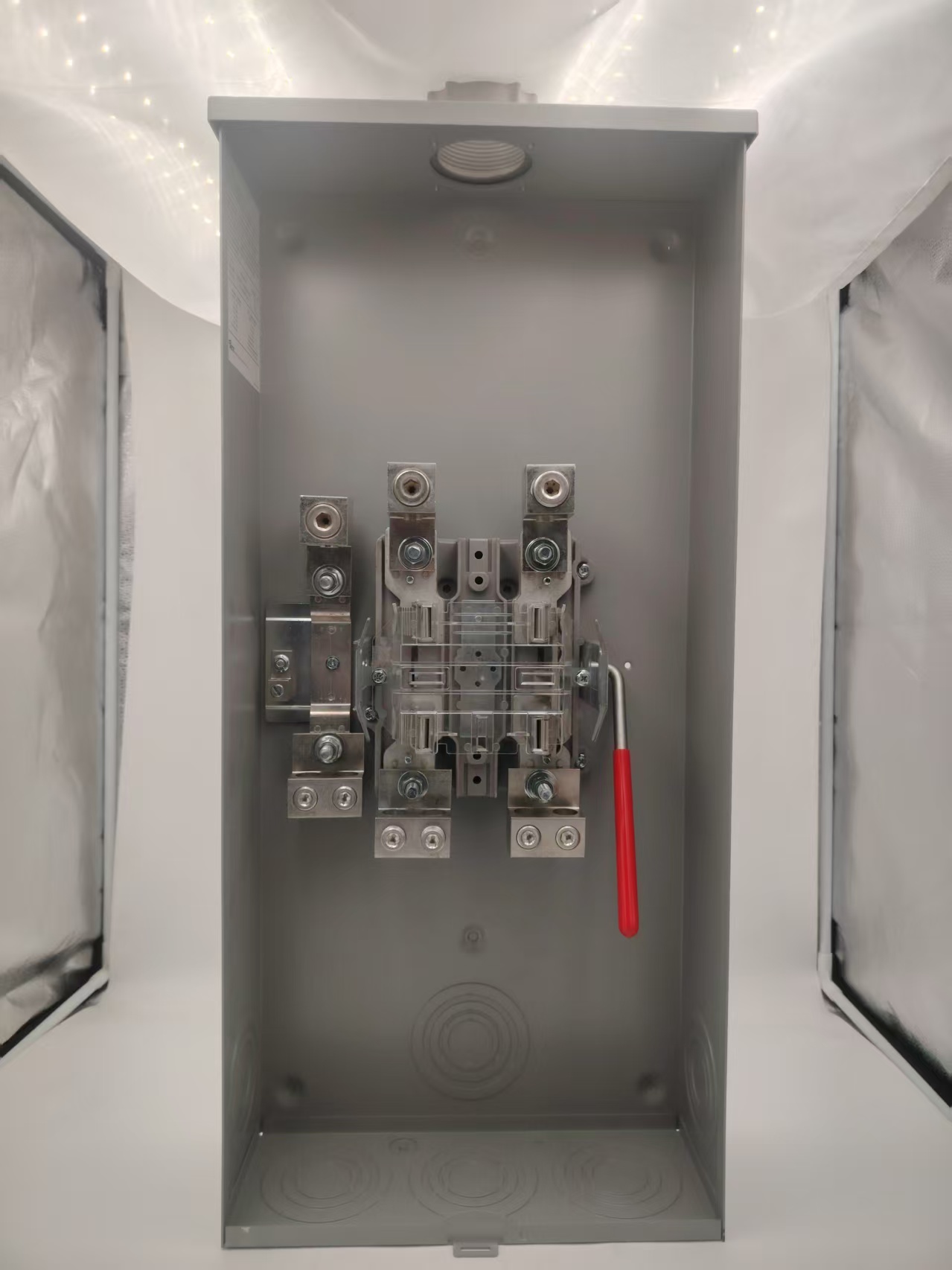

A professional 320A meter socket (such as the Milbank U2594-X model) typically possesses the following characteristics:
High Specifications: 320A continuous current, 600V voltage, three-phase configuration.
Strong Protection: At least Type 3R rating (rainproof and provides protection against falling dirt).

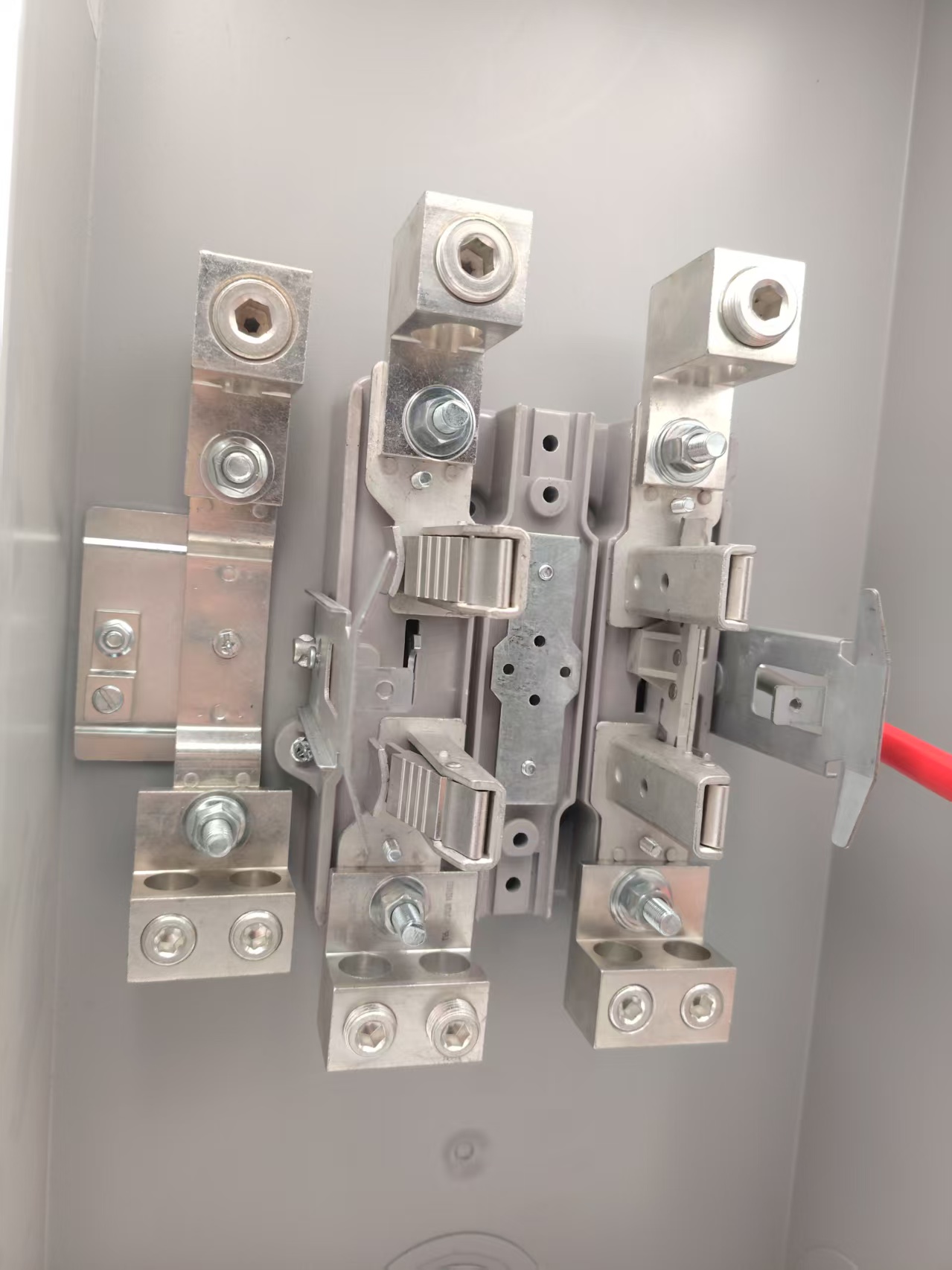

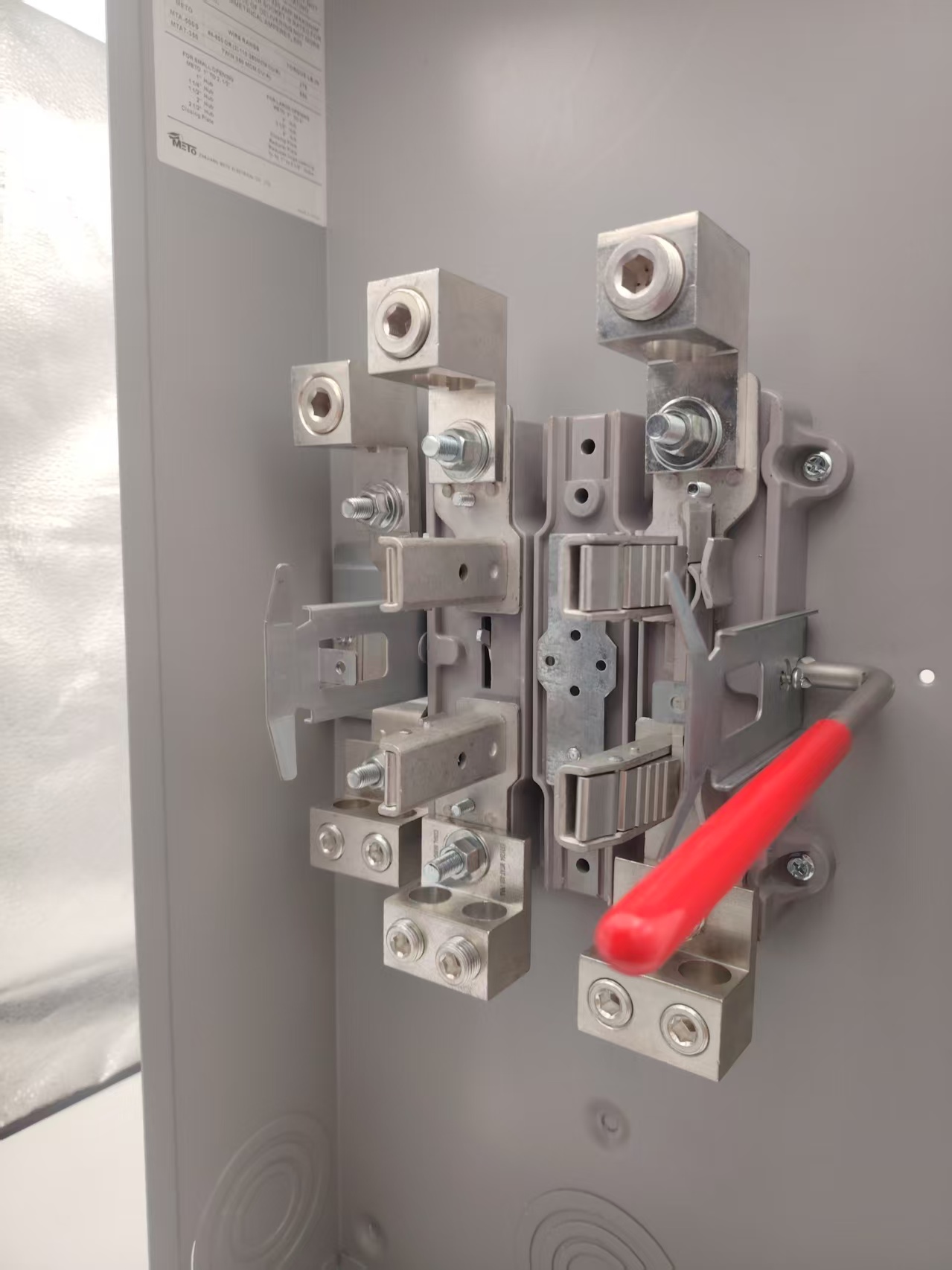

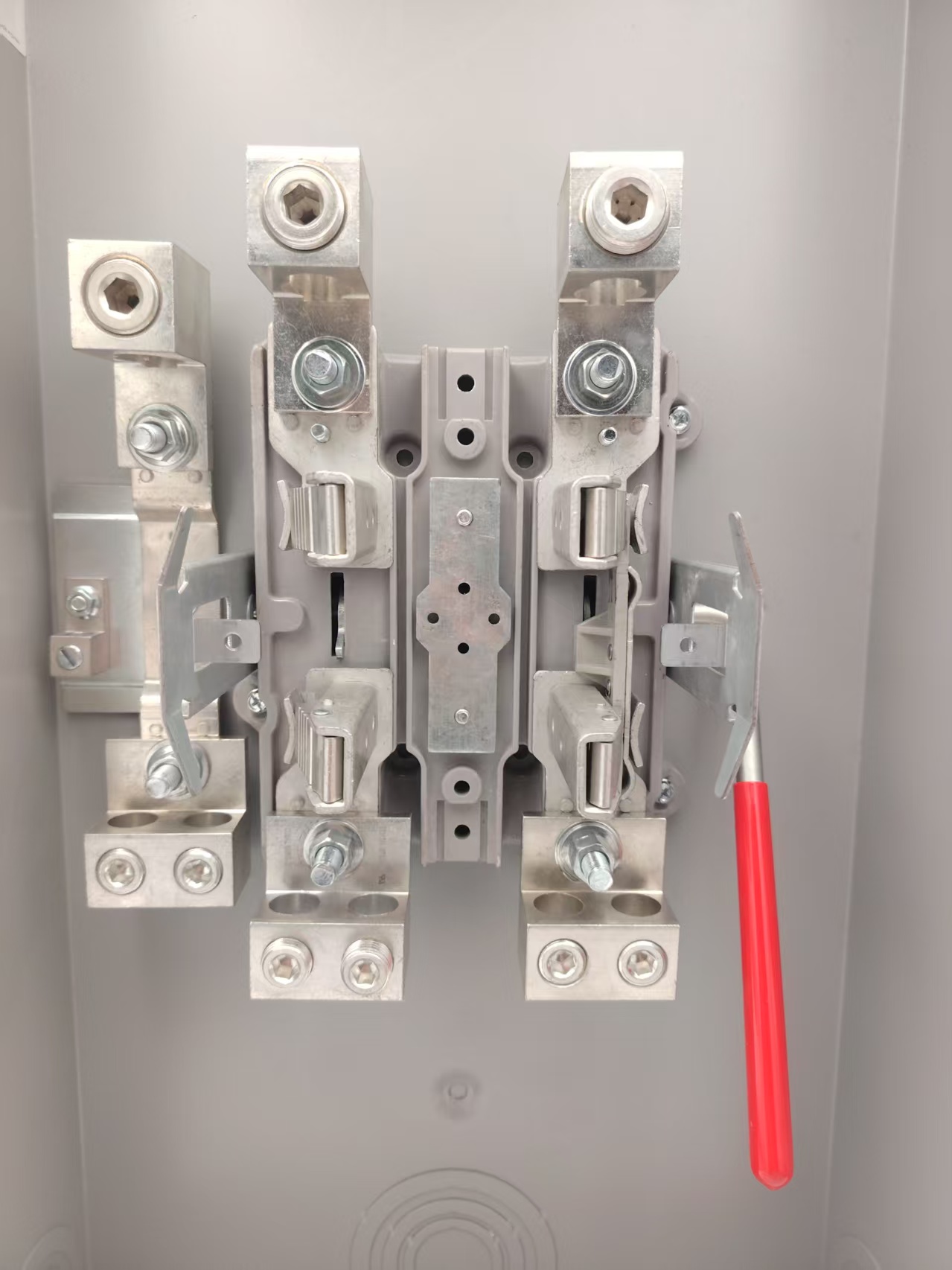

Safety Design: Large stud terminals, dedicated grounding lug, possibly equipped with a lever bypass switch.
Large Size: Considerable physical dimensions (e.g., approximately H86cm × W48cm × D16.5cm).
IV. Typical Application Scenarios
It serves genuine high-power-demand scenarios:
Large Commercial/Industrial: Power service entrance for factories, shopping malls, office buildings.
High-End Residences: Large villas or luxury homes equipped with comprehensive high-end facilities.
Temporary High-Capacity Supply: Temporary power for large construction sites.
Specific Venues: Electric vehicle charging stations, data centers, commercial kitchens.
V. Crucial Precautions
Absolutely No DIY Installation: Involves high voltage and legal metering; must be performed by the power utility or its authorized contractors.
Professional Design is Mandatory: The entire system (cables, protective switches, etc.) must be designed by an electrical engineer according to codes and approved by the power utility.
Significant Cost Difference: The cost of the socket itself and its supporting components (large-gauge cables, circuit breakers, etc.) is substantially higher than that of standard residential meter sockets.
VI. Frequently Asked Questions (FAQ)
Q: How can I tell if a meter socket is overloaded?
A: Observe if the meter box is abnormally hot, has a burnt smell, or if the meter display is abnormal. If in doubt, contact the utility for inspection immediately.
Q: Can I just buy one and install it myself?
A: No. The model must be on the local power utility's approved list, and they must install the sealing tags.
Conclusion
The meter socket is the cornerstone ensuring electrical safety and accurate metering. The 320A meter socket is specifically designed for professional, high-power scenarios. If you are planning a related project, the most important first step is always: consult your local power utility during the initial planning phase to clarify all technical and application requirements. This is the only correct path to ensure your project is lawful, safe, and proceeds smoothly.
