Single Phase Prepaid keyboard Electricity Meter: Revolutionizing Electricity Fee Collection Models

Single Phase Prepaid Keypad Electricity Meter: Revolutionizing Electricity Fee Collection with Advanced Metering Solutions

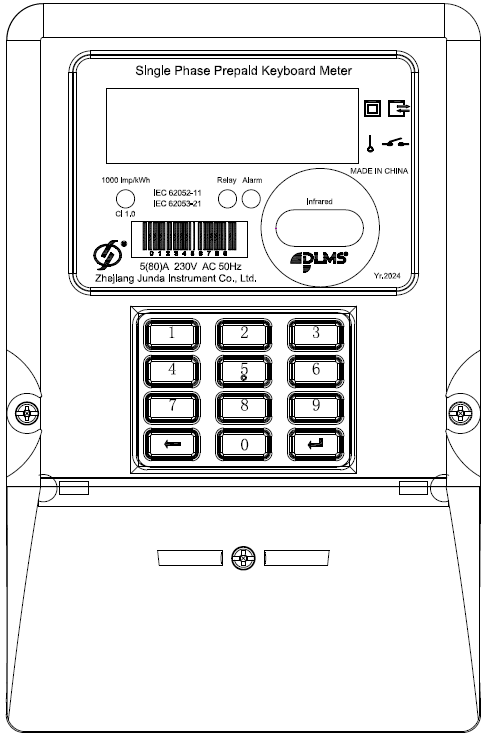

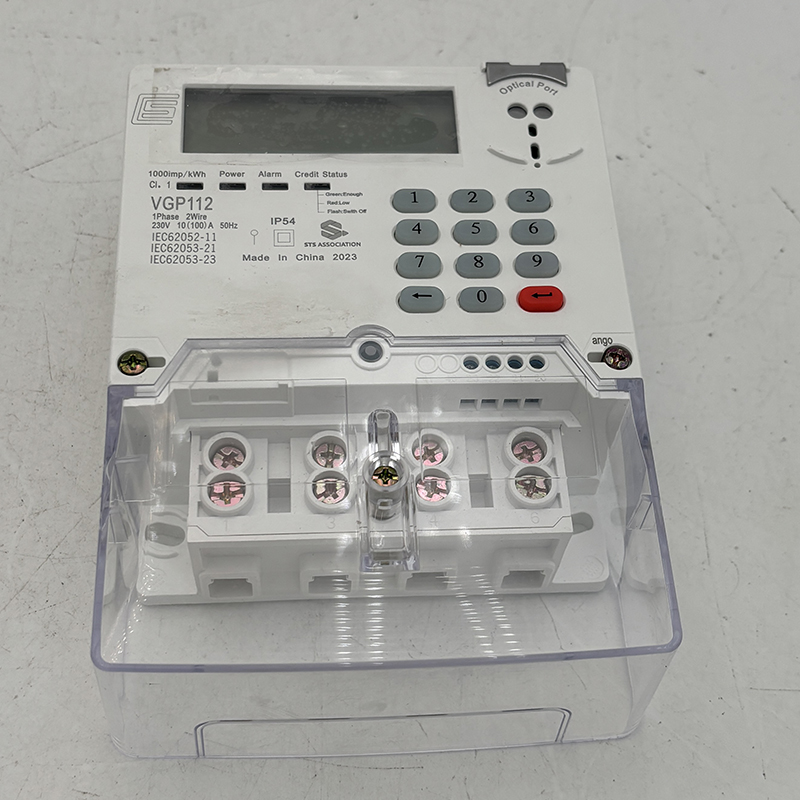

Single-phase prepaid keyboard electricity meters, also referred to as keypad meters or keyboard meters, represent a major evolution in energy meter technology. Utilizing large-scale integrated circuits, digital sampling, and SMT technology, these devices integrate multiple functions—including metering, settlement, communication, event logging, load control, and prepayment—into one compact unit. As a form of smart meter, they enable efficient collection, processing, storage, and payment of electricity data for low-voltage users in residential and commercial settings.

For decades, the conventional “use first, pay later” model resulted in inefficient billing processes, payment delays, and frequent unpaid bills. Consumers received statements passively, with little insight into their actual energy use. Manual meter readings—costly, infrequent, and prone to error—further compounded consumer dissatisfaction. In response, prepayment energy meters such as those using STS prepayment standards have emerged as a modern alternative, reshaping the relationship between utilities and consumers and forming the foundation of future smart metering infrastructures.

These prepaid kWh meters bring transformative benefits across several areas:

100% advance payment ensures full collection and eliminates delinquency.

Users actively monitor their balance, encouraging energy-conscious behavior.

Remote automatic readings allow seamless top-ups, disconnections, and reconnections.

Key Functions & Features

Prepayment Functionality: Core to the electricity energy meter, it allows consumption only after payment, with balance alerts and recharge history tracking.

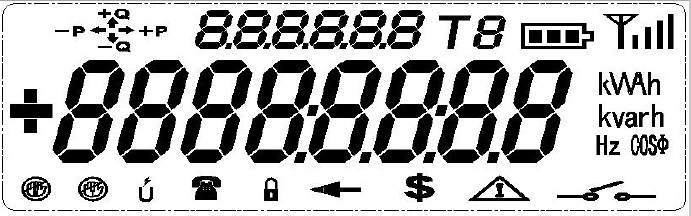

Metering & Measurement: Accurately measures active energy (input/output) and displays real-time parameters such as voltage, current, power, power factor, and frequency.

Load Control: Includes overload protection, cutting power when thresholds are exceeded, with options for auto or manual restoration.

Event Logging: Tracks tampering events (cover opening, magnetic interference), grid events (outage, undervoltage, overvoltage), and control events (relay activation).

Data Query: Using short codes on the keypad meter, users can access balance, energy meter data, time, and event logs directly.

Communication: Optical interface compliant with DLMS/COSEM supports meter reading and configuration.

Key Technical Specifications

Voltage/Current: 230 V, 5(80) A

Accuracy Class: Active Class 1

Pulse Constant: 1000 imp/kWh

Operating Temperature: –25 ℃ to 55 ℃

Protection Rating: IP54

Service Life: 10 years

Modern prepaid smart meters are no longer basic measuring devices but intelligent terminals that merge metering, communication, control, and analytics. They support:

Bidirectional Communication: Real-time interaction via 4G, NB-IoT, or LoRa.

Integrated Capabilities: Load control, anti-tamper, event logging, and multi-tariff billing.

Enhanced User Experience: Mobile top-ups, balance checks via app, and SMS alerts.

Smart Grid Integration: Acting as grid endpoints, they supply essential data for demand response and distribution automation.

In applications requiring usage division—such as multi-tenant buildings—a split meter configuration can also be supported, enabling fair and transparent energy allocation.
