Outdoor Power Distribution Box: Enhancing Quality of Life and Convenience

Outdoor Power Distribution Box: Enhancing Quality of Life and Convenience

A power distribution box, also known as a distribution cabinet, is an electrical device used to distribute electrical energy, control circuits, and provide protection and monitoring functions. It integrates switching equipment, measuring instruments, protective devices, and auxiliary components into a metal enclosure, facilitating the management, maintenance, and protection of circuits.

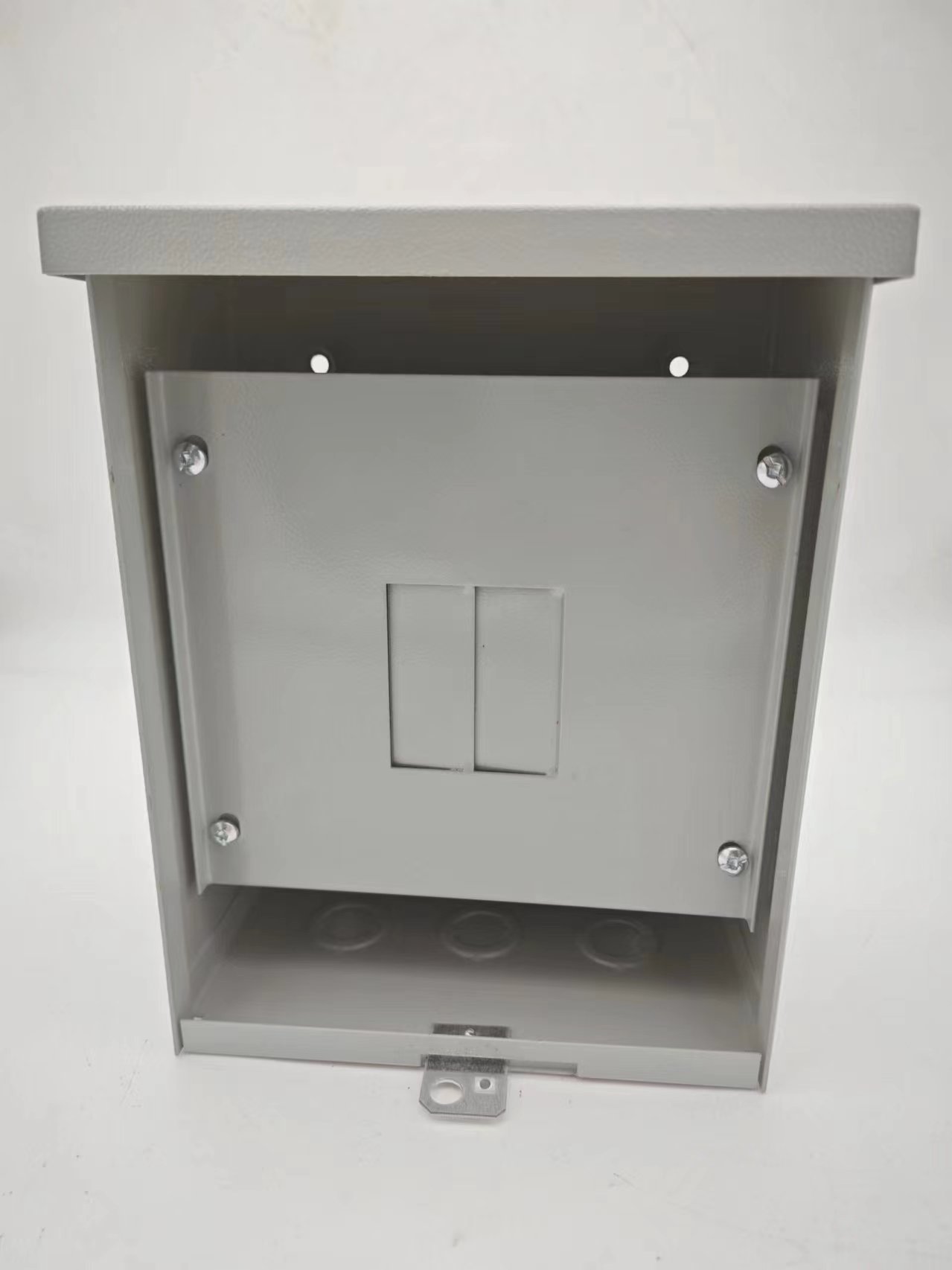

To meet the needs of outdoor facilities, a weather-resistant and corrosion-proof outdoor power distribution box is essential. Outdoor distribution boxes are designed to be waterproof, corrosion-resistant, and dustproof. They not only operate stably in harsh environments but also provide reliable protection for electrical circuits. Constructed from high-strength materials and featuring advanced sealing technology, outdoor distribution boxes are widely used in various fields, including furniture, photovoltaic power, wind energy, marine applications, bridges, and offshore industries. They ensure stable circuit operation and, at critical moments, safeguard the safety of personnel.

Functions of a Power Distribution Box:

Power Distribution:
Distributes electrical energy from the power source to various electrical devices, enabling efficient power allocation.
Circuit Control:
Facilitates switching operations for easy control of electrical equipment.
Circuit Protection:
Equipped with components such as circuit breakers and leakage protectors to guard against overloads and short circuits, ensuring electrical safety.
Monitoring and Measurement:
Includes indicators and meters to display circuit status and parameters, allowing users to monitor and manage circuit conditions.

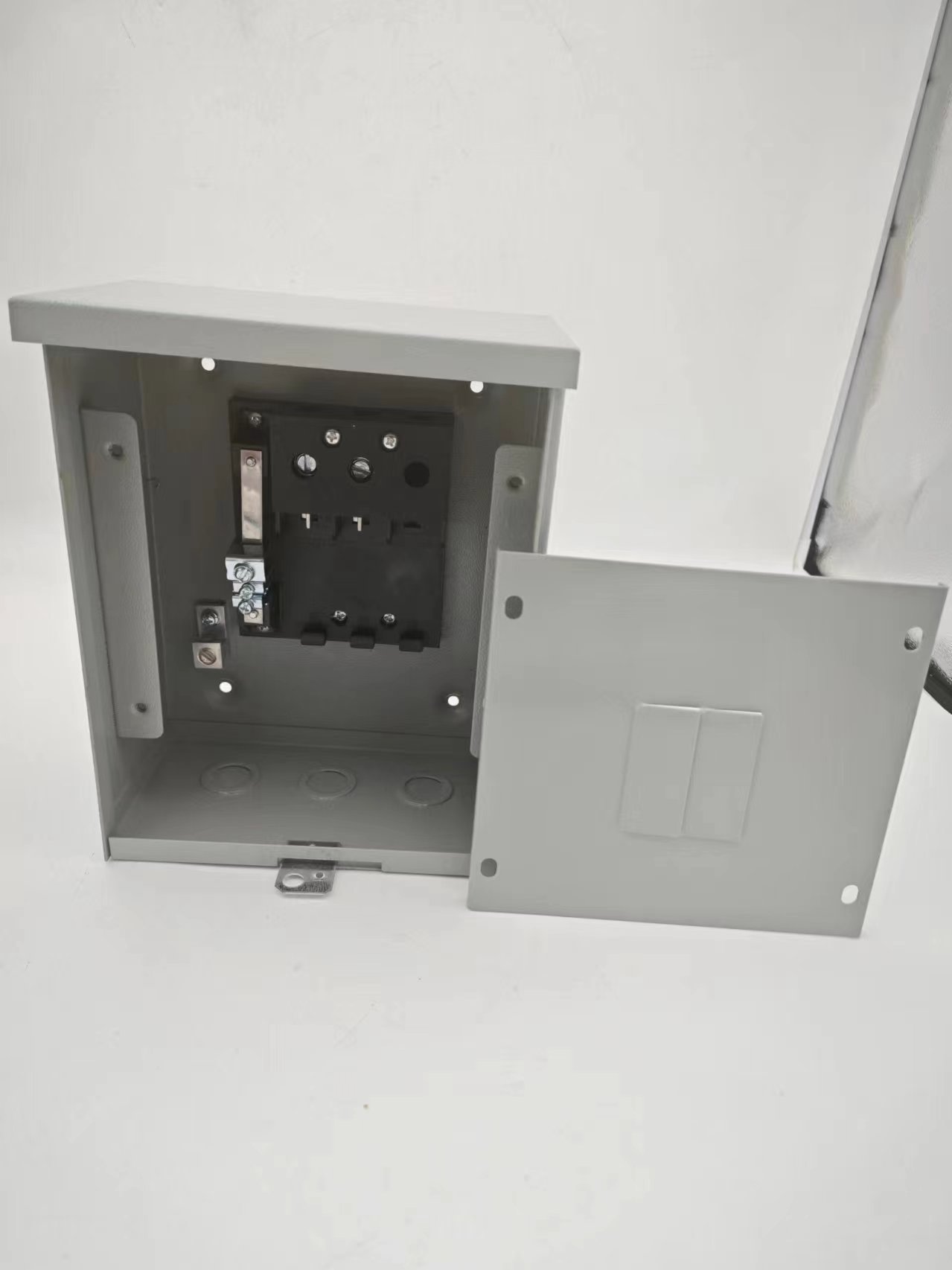

Components of a Power Distribution Box:

Enclosure: Typically made of metal or non-metallic materials, housing and protecting internal electrical components.
Switching Equipment: Such as circuit breakers and isolators, used to control circuit connections.
Measuring Instruments: Such as voltmeters and ammeters, for monitoring circuit performance.
Protective Devices: Such as fuses and relays, to safeguard circuits and equipment.
Auxiliary Equipment: Such as indicator lights and terminal blocks, aiding in circuit control and maintenance.

Selecting an Outdoor Power Distribution Box:

Design and Circuit Layout:
When choosing an outdoor distribution box, consider the number and characteristics of circuit breakers to design circuit branches, while reserving space for future expansions to ensure flexibility.
Material and Craftsmanship:
The material of the outdoor distribution box should be made of sufficiently thick steel plates and sturdy brackets. The steel plates should be evenly painted to enhance rust resistance, and the glass (if any) should be thick and free of cracks.
Accessories and Heat Dissipation:
Pay attention to cable fixation and management, ensuring the distribution box has effective heat dissipation. Fans are often installed on the top or sides of the cabinet to improve cooling. During installation, network cables, telecom cables, and power cables should be properly organized and secured within the cabinet.
Installation Environment and Assessment:
Finally, when selecting an outdoor distribution box, evaluate the actual usage environment and installation height to ensure suitability and safety. Different environments and heights may require different types of distribution boxes.

Outdoor power distribution boxes play a vital role in electrical systems, ensuring normal operation while providing critical safety protection.
