GAK Series Fuse Isolating Safety Switch - 2P 30A Indoor / 2P/3P 60A Outdoor
High-Reliability Electrical Protection, Certified for Global Export (Philippines, Thailand, Caribbean, etc.)
Product Overview
GAK Series Safety Switch is a high-reliability electrical protection device integrating power switching, circuit isolation and fuse protection, specially designed for global industrial, commercial and civil application scenarios. It offers indoor and outdoor models, with rated current covering 30A and 60A, and pole configuration of 2P and 3P. Fully compliant with IEC 60947-3, UL and CSA standards, it provides comprehensive safety protection for electrical circuits and operators. As a key export product of global safety switches, this series is widely sold to major importing countries such as India, Vietnam and Mexico, and is favored by buyers for its stable performance and high safety level.
Core Products & Main Advantages

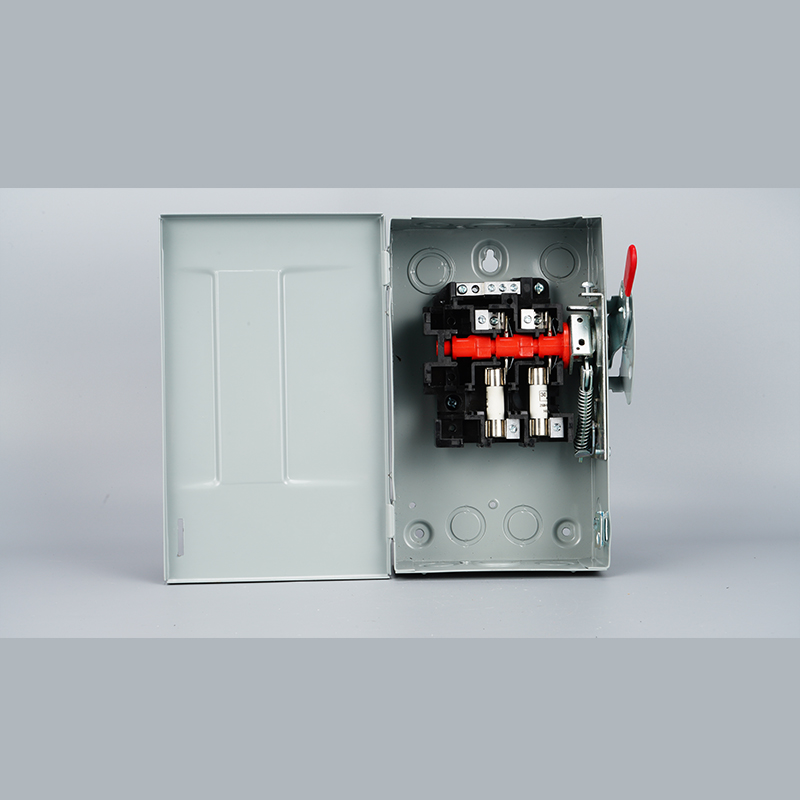

1. 2P 30A Indoor Fuse-Type Safety Transfer Switch
- Pole Configuration: 2P (suitable for single-phase two-wire L+N or split-phase three-wire L1, L2, N systems)
- Protection Level: IP20, suitable for dry, dust-free indoor environments
- Core Functions: Dual safety protection (mechanical isolation + fuse protection), quickly cuts off power in case of overload or short circuit
- Applications: Indoor power distribution, small equipment, air conditioners, water pumps, indoor photovoltaic energy storage systems, residential/commercial distribution boxes
2. 60A Outdoor Fuse-Type Safety Transfer Switch
- Pole Configuration: Optional 2P/3P; 3P is suitable for three-phase 400-415V AC 50/60Hz systems
- Protection Level: IP65/NEMA 3R, with rainproof, dustproof and splash-proof functions, specially designed for harsh outdoor environments
- Core Functions: Visible break point (break position >6mm), dedicated PE grounding terminal (adapting to 16-50mm² wires), ensuring maintenance safety and preventing electric shock risks
- Applications: Outdoor equipment, temporary power supply for construction sites, agricultural irrigation, factory power distribution, three-phase motors, commercial power distribution systems, power supply in hazardous environments
3. Universal Core Advantages

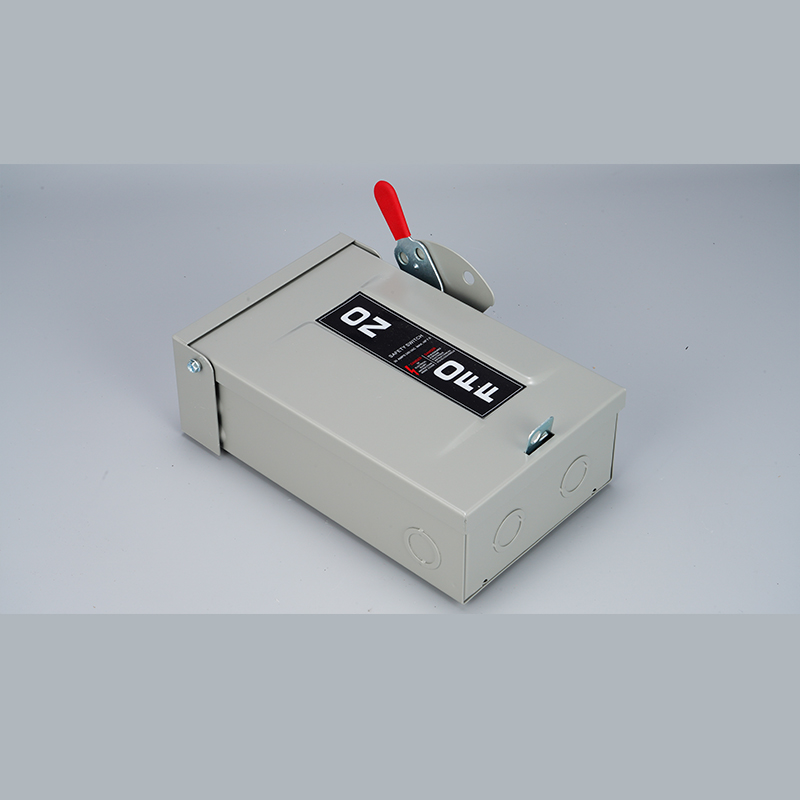

- Sturdy Metal Shell: Protects internal electrical components from external environmental damage and ensures operator safety; outdoor models are equipped with anti-rust coating

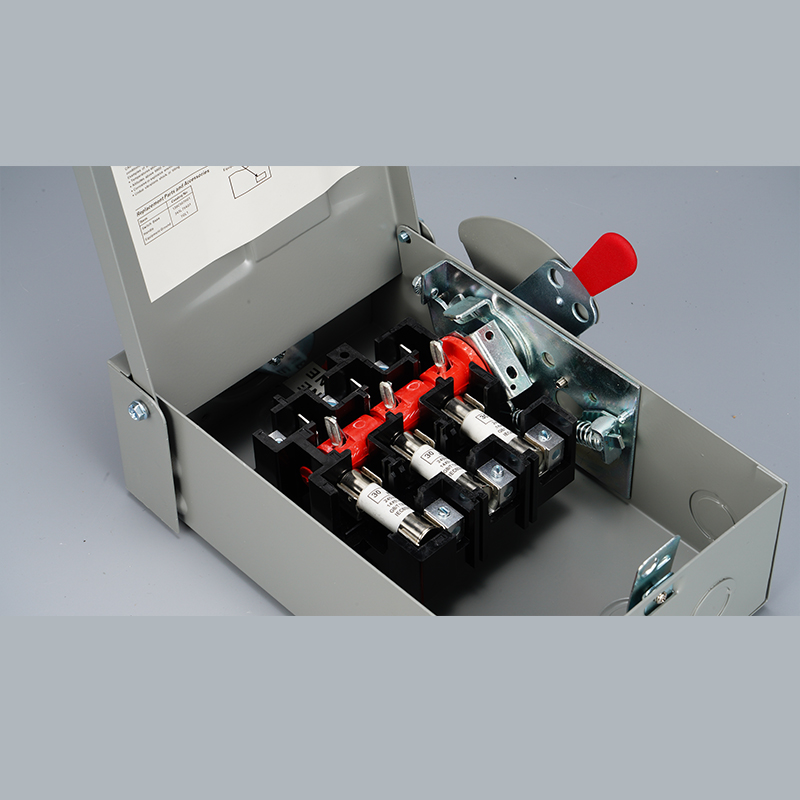

- Reliable Fuse Protection: Compatible with standard low-voltage fuses (gG/gL full-range protection), which automatically fuses in case of failure to protect circuits and equipment
- Manual Control Handle: Red ergonomic handle, easy to operate; realizes power on/off by rotating or toggling, with keyhole to prevent misoperation
- High Compatibility: Rated voltage AC 440V/DC 32V, frequency 50/60Hz, universal design, compatible with global power grid standards
- Easy Wiring: High-current copper terminals, supporting #14~2 AWG cables, suitable for copper and aluminum wires
- Certified Safety: Complies with IEC 60947-3, UL, CSA, NEC standards, meeting the import requirements of global markets
Detailed Technical Specifications
|
Item
|
GAK2-30A (2P Indoor)
|
GAK2-60A (2P Outdoor)
|
GAK3-60A (3P Outdoor)
|
|
Model
|
GAK2-30A
|
GAK2-60A
|
GAK3-60A
|
|
Pole
|
2P
|
2P
|
3P
|
|
Rated Current
|
30A
|
60A
|
60A
|
|
Rated Voltage
|
AC 440V / DC 32V
|
AC 440V / DC 32V
|
AC 400-415V / DC 32V
|
|
Rated Frequency
|
50/60Hz
|
50/60Hz
|
50/60Hz
|
|
Protection Level
|
IP20
|
IP65/NEMA 3R
|
IP65/NEMA 3R
|
|
Fuse Type
|
gG/gL (00, 000, 1, etc.)
|
gG/gL (00, 000, 1, etc.)
|
gG/gL (00, 000, 1, etc.)
|
|
Dimensions (L×W×H)
|
44×20×27.5 cm
|
Customizable
|
Customizable
|
|
Net Weight
|
13kg
|
Customizable
|
Customizable
|
|
Gross Weight
|
14kg
|
Customizable
|
Customizable
|
|
Shell Material
|
Plastic/Thin Steel Plate
|
Thick Steel Plate/Stainless Steel
|
Thick Steel Plate/Stainless Steel
|
|
Grounding Terminal
|
Optional
|
Optional
|
Yes (16-50mm²)
|
Fuse Protection Principle
As a passive overcurrent protection device, the fuse is the last line of defense for circuit safety. When a serious overload or short circuit occurs, the fuse fuses itself to forcibly cut off the current path, achieving the following effects:
- Prevents wire overheating and fire hazards
- Protects connected equipment from overcurrent damage
- Protects upstream power distribution equipment (such as transformers, switchgear) from short-circuit current impact
- Provides indirect contact electric shock protection for operators
- Cuts off ultra-high fault current in milliseconds during phase-to-phase faults, suppresses arc energy, and avoids catastrophic faults
- Only isolates the faulty circuit to ensure that the power supply of other branches is not affected
Application Scenarios
Indoor Applications (2P 30A)
Main switch of residential/commercial distribution boxes, control and protection of industrial equipment (machine tools, fans, water pumps), indoor air conditioners, water heaters, indoor charging piles, indoor power distribution of small photovoltaic/energy storage systems.
Outdoor Applications (60A 2P/3P)
Outdoor air conditioners, heat pumps, water pumps, ventilation equipment, outdoor charging piles, photovoltaic combiner boxes, energy storage systems, temporary power supply for construction sites, street lamp control, agricultural irrigation, power supply for breeding equipment, factory distribution panels, commercial building distribution cabinets.
Company Advantages
We are a professional manufacturer of GAK series safety switches, with rich export experience. Our products are exported to the Philippines, Thailand, the Caribbean and other regions around the world and have passed ISO 9001/TS 16949 certification. We provide high-quality products and one-stop after-sales service, support customization according to customer needs, and ensure on-time delivery. Our products have stable performance, competitive prices and complete certifications, which can fully meet the needs of global buyers for safety switches in various scenarios.
FAQ
Q: Can indoor models be used outdoors?
A: No. The indoor model has a protection level of IP20 and does not have rainproof and dustproof functions. Using it outdoors will cause equipment failure and safety risks. Please choose the IP65/NEMA 3R outdoor model for outdoor use.
Q: What specification of fuse should I choose?
A: It is recommended to choose gG/gL type fuses matching the switch current. For example, 30A switches are equipped with 25-30A fuses, and 60A switches are equipped with 50-60A fuses. We can also provide professional selection suggestions according to your specific load.
Q: Do you provide sample testing?
A: Yes. We can provide samples for testing, and the sample fee can be deducted from the payment of bulk orders.
Q: What certifications do your products have?
A: Our GAK safety switches comply with IEC 60947-3, UL, CSA, NEC standards and have passed relevant certifications, which can meet the import requirements of various countries.
Contact Us
If you have any questions about product specifications, customization, pricing or delivery, please feel free to contact us. We will reply to you within 24 hours and provide professional solutions.
